Straight Lifting 10-16 Ton Telescopic Knockle Boom Lorry Cargo Lifter 25-35ton Mounted Crane Truck

Products

Straight Lifting 10-16 Ton Telescopic Knockle Boom Lorry Cargo Lifter 25-35ton Mounted Crane Truck

share to:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest

Sinotruk Howo 6×4 Cargo Truck with Crane is telescoping boom truck, also known as boom truck, is used to lift materials through a hydraulic winch by raising and lowering the boom. Operation is simple enough: rotate, extend, raise and lower when necessary.

Lead Time:20 days

Shipping Port:Any Port Of China

Payment:T/T;L/C

Straight Lifting 10-16 Ton Telescopic Knockle Boom Lorry Cargo Lifter 25-35ton Mounted Crane Truck

Cabin        Driving type 4×2      LHD/RHD

Vehicle Main Dimensions      Overall dimensions (L x W x H) mm      9200×2580×3700

Carriage Size (L x W x H) mm        5950×2300×600

Wheel base  (mm)      5200

Wheel track  (front/rear) (mm)      1886/1845

Weight in KGS

Tare Weight

6900



payload

10000



Front axles loading capacity

1×3600



Rear axles loading capacity

1×10500

Max. driving speed(km/h)

95

Engine

Brand

Sinotruk



Model

YUCHAI



Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling



Horse Power(HP)

160



Emission standard

Euro II

Gearbox

DC6J65TC  6 Forwards gear & 1 reverse r

Clutch

Reinforced diaphragm clutch, diameter 430 mm

Tire

9.00R20 Radial tyre 7pcs including one spare tire

Straight Lifting 10-16 Ton Telescopic Knockle Boom Lorry Cargo Lifter 25-35ton Mounted Crane Truck插图

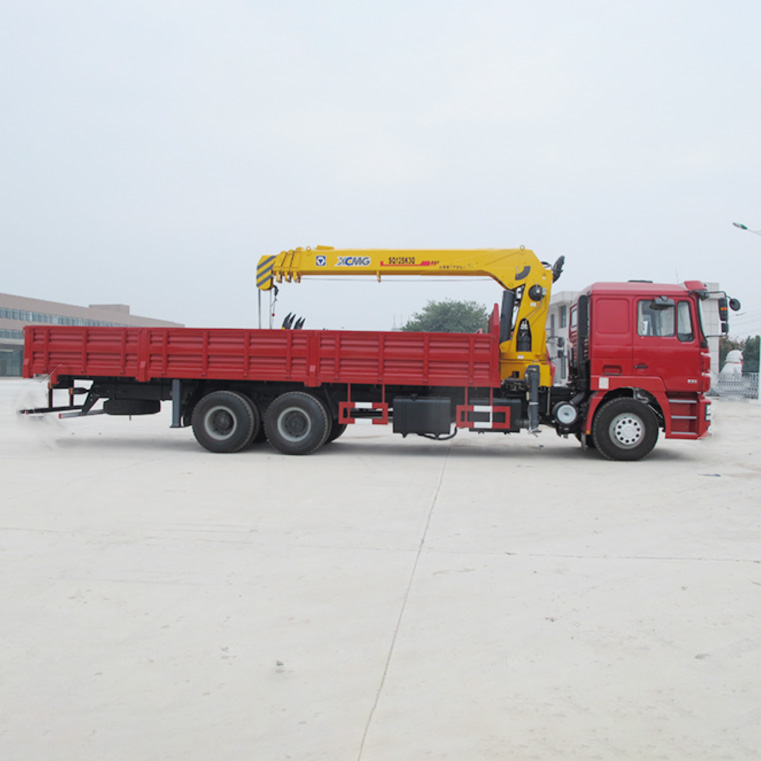

HOWO 6×4 truck with XCMG 14T Crane is telescoping boom truck, also known as boom truck, is used to lift materials through a hydraulic winch by raising and lowering the boom. Operation is simple enough: rotate, extend, raise and lower when necessary. Telescoping boom trucks strictly control the height of lifting and lowering of objects to facilitate the operation of workers. They are often used in utilities such as oil and natural gas. Boom truck cranes are controlled either via a lower control station with manual or electric/hydraulic controls, or via remote control. When operating from the fixed controls, the operator is safely off the ground either standing at the turret or within an enclosed cabin. This provides maximized visibility of the lifting activity.

Related Products

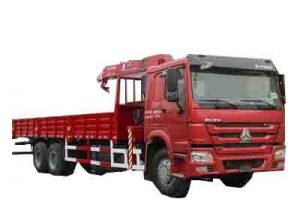

Straight Lifting 10-16 Ton Telescopic Knockle Boom Lorry Cargo Lifter 25-35ton Mounted Crane Truck (1)白底
