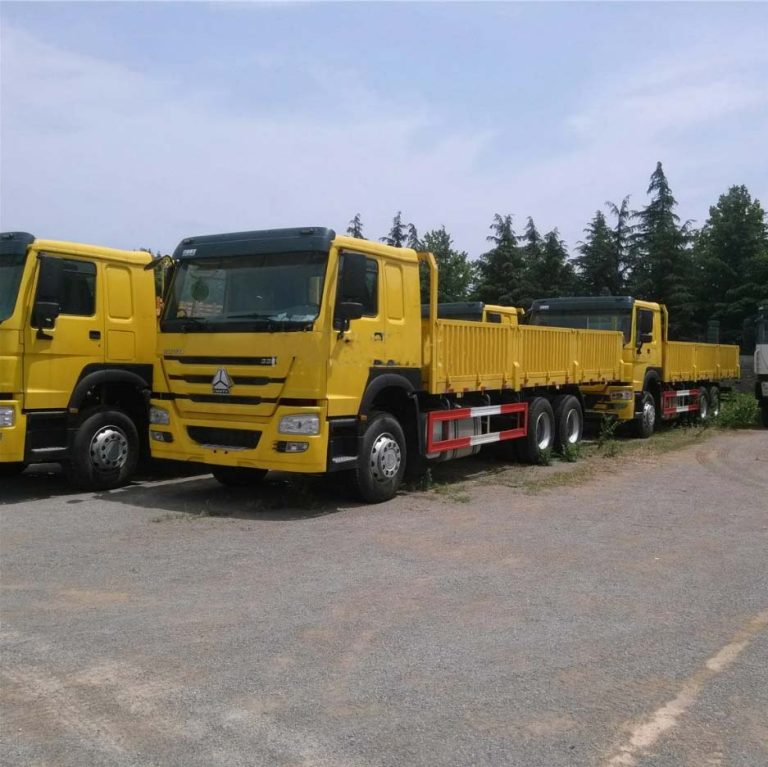

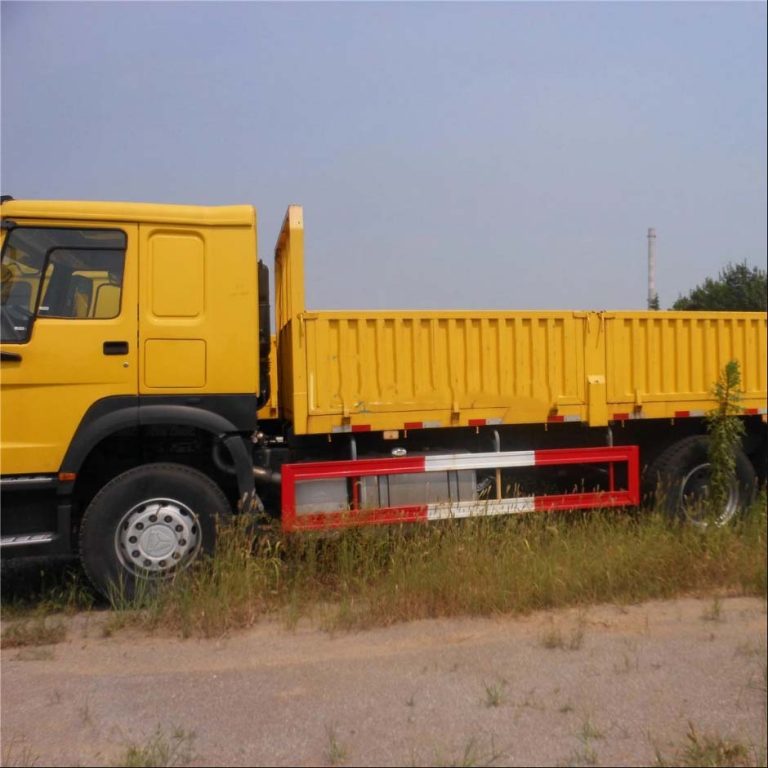

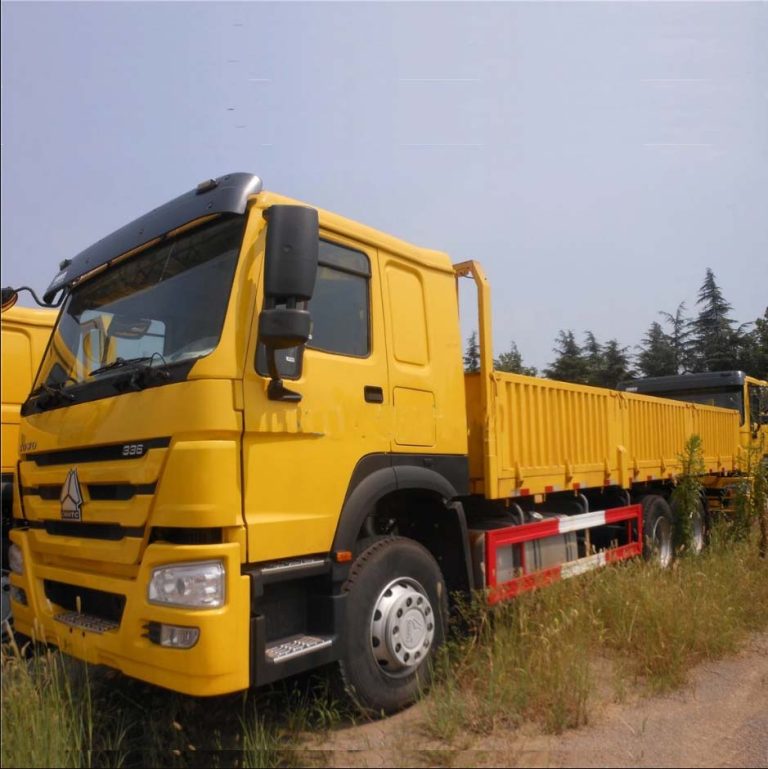

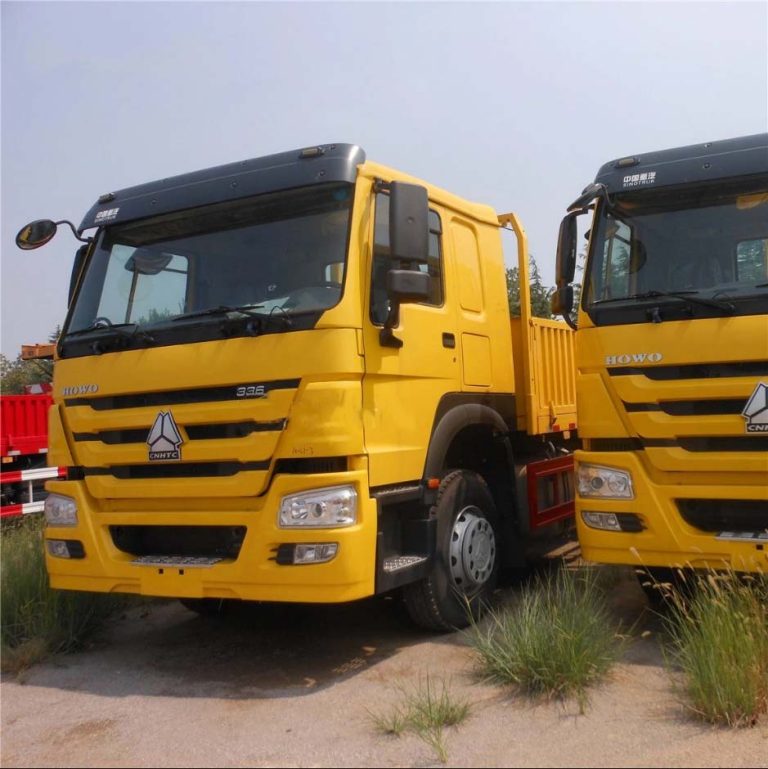

Sinotruk HOWO 6X4 371HP Lorry Truck Cargo Truck with Sidewall

Cabin HW76, with two seats and one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating
and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse
stabilizer, with 4-point support fully floating suspension + shock absorber + air roof spoiler
Engine Model WD615.47
Horse Power (Hp/rpm) 371/2200
Max.Toruqe(Nm/rpm) 1820/1100-1500
Displacement (L) 9.726
Type DIESEL, EURO II emission, 6-cylinder in-line with water cooling, turbo-charging and intercooling, 4-stroke common rail electronic
controlled diesel engine
Clutch Φ430 Diaphragm spring clutch, hydraulic operating with air assistance
Transmission HW19712, 12 speeds forward and 2 speeds reverse.
Front Axle HF9, Steering with double T-cross section beam, Rated loading capacity: 9,000kgs.
Driving Axle HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.42,
4.8)
Suspension Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs,
bogie spring and stabilizer
Steering System ZF power steering, model ZF8118, hydraulic steering with power assistance
Brake System Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating;
Auxiliary brake: Engine exhaust brake
Electrics Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah
Tire 12.00R20
Fuel Tank(Gas Tank) Capacity (L) 400L Diesel Tank
Dead Weight (kg) 12530
Gross Vehicle Weight (kg) 33000
Gross Combination Weight (kg) 80000
Overall Dimension(L*W*H)(mm) 8145×2560×3450
Wheelbase(mm) 4325+1350
Front/Rear Overhang( mm) 1500/725
Wheel Track(Front/Rear)(mm) 2022/1850
Min. Ground Clearance(mm) 314
Approach/Departure Angle( °) 16/70
Max. Speed (km/h) 92
Max. Gradebility (%) ≥40
Bucket Size 7500*2300*2300mm



Sinotruk Howo 115hp 4T Light Cargo Truck Lorry Truck 4×2

We are the first level agency for SINOTRUK whole tuck series, we can supply HOWO tractor trucks, HOWO dump trucks, HOWO concrete mixer trucks and special trucks, we can supply trucks for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.

Related Products

3 Axles Dolly Full Drawbar Drop Flatbed Side Wall Board Fence Turn Table Twist Lock Container CKD SKD Truck Trailer for Sale in Ethiopia
SINOTRUK HOWO 10 Wheels Fence Cargo Truck with Dolly Trailer
Sinotruk HOWO 6X4 420HP Lorry Truck Cargo Truck with Sidewall (10)
Sinotruk HOWO 6X4 Lorry Fence Cargo Truck

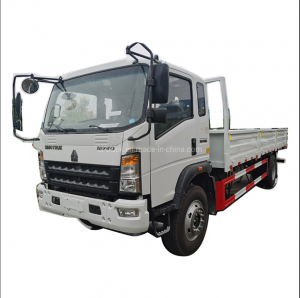

Sinotruk HOWO 4X2 371HP Lorry Truck Cargo Truck with Sidewall (1)
