HOWO Concrete Howo mixer truck is optimization of body structure, special mold production, beautiful appearance, concrete mixing, discharge uniformity, low rate of residual. Cost-effective concrete mixer truck with competitive price is your best choice.

Sinotruk HOWO 6X4 10cbm Concrete Mixer Cement Equipment Tank Truck

1.Product Introduction

SINOTRUK HOWO 6×4 Concrete mixer truck suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business. Concrete Howo mixer truck is optimization of body structure, special mold production, beautiful appearance, concrete mixing, discharge uniformity, low rate of residual. Cost-effective concrete mixer truck with competitive price is your best choice.

2.Product Details

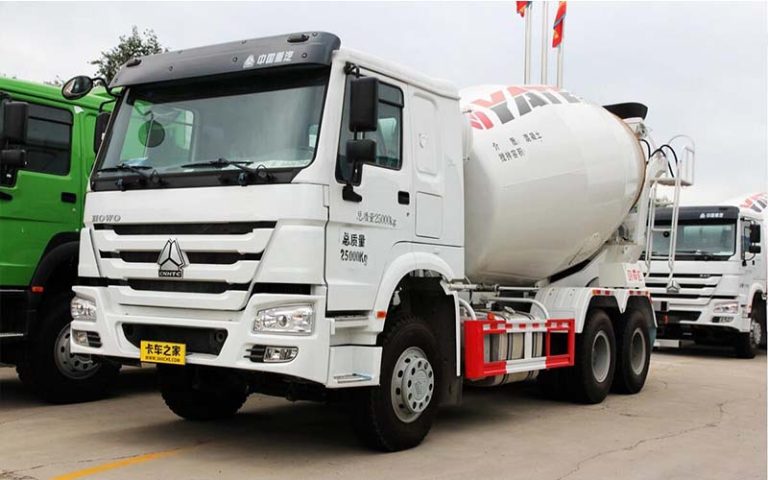

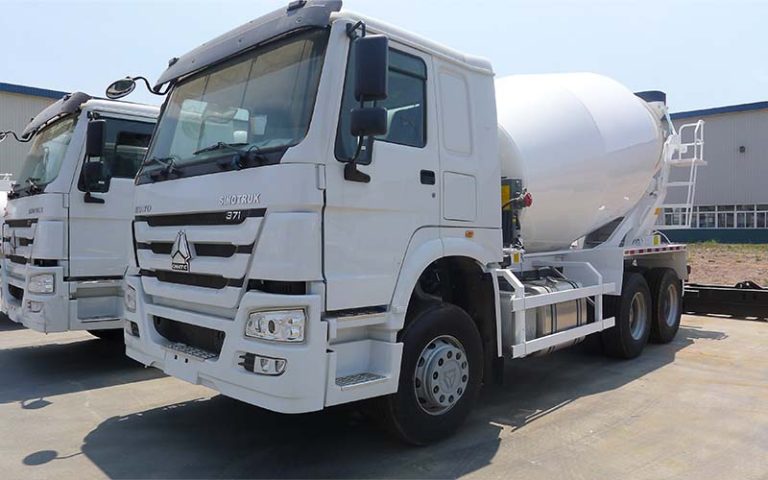

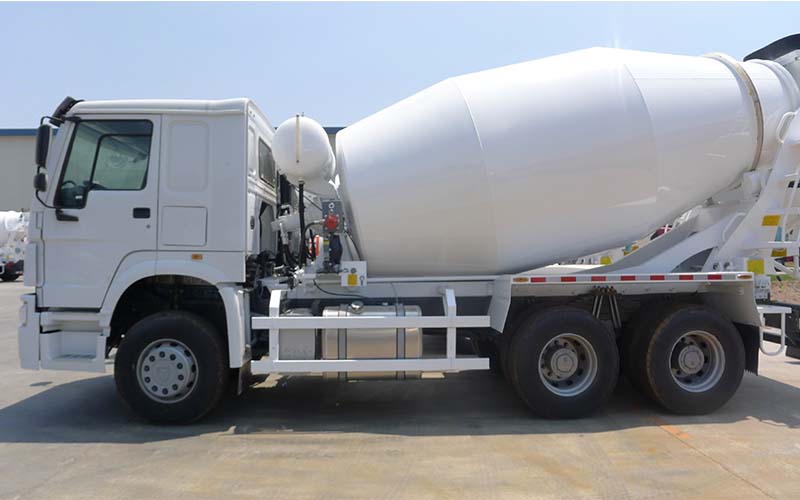

Sinotruk HOWO 6X4 10cbm Concrete Mixer Cement Equipment Tank Truck插图

3.Product Parameter (Specification)



Model Chassis model: ZZ1257N3847D1
Engine D10.38-40(380Hp at 2000r/min, Euro IV)1560Nm at 1200-1500r/min, With PTO
Clutch Single-plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance
Transmission HW19710, 10 forward and 2 reverse, manual
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle HF9 (9000Kg)
Rear Axles HC16 (2x16000Kg) Ratio: 5.73
Chassis Enhanced version of multiple-leaf spring (Front 9 pieces, Rear 12 pieces)
Fuel tank With one 400 L fuel tank with locking fuel cap
Steering ZF power steering, model ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2

Brakes Service brake: dual circuit compressed air brake

Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Wheel & Tires Rims width: 8.5

Tires: 12.00R20

Cab HW76 cab, one sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, adjustable roof flap.
Electrics Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW

Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Cargo Body 10m³, American Eaton brand pump, American Eaton brand motor, Italy Bonfiglioli speed reducer

Tank head 6 mm, body 5 mm

Dimensions in mm Wheel base

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle(o)

Departure angle(o)

Overall Dimension

3800+1400

2022

1830

1500

1860

16

24

9220x2500x3930 (mm)

Weight in kg Net weight

Gross Vehicle Weight

Front axle loading capacity

Rear axle loading capacity

14500

41000

9000

16000×2

Performance Maximum driving speed(km/h)

Maximum grade ablility (%)

Minimum ground clearance(mm)

Minimum turning circle(m)

85

35

290

15

Optional ABS

Air conditioner

Tires

Bumper

Truck color

Intercooler Protector

Fire Extinguisher



  1. Warranty
  2. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
    2. Other spare part could be supplied by OEM at cost prices.
    3. Regularly callback to know the vehicle’s working status.
    4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.

  1. 5. Advantages

1.Competitive Factory Price and Excellent Quality
2.More than 20 years’ experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers



Related Products

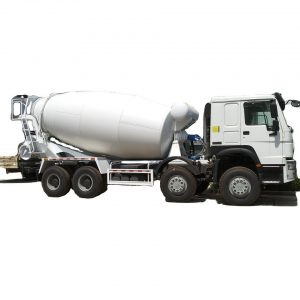

Concrete mixer truck for sale
