Sinotruk HOWO 30T-40T 8X4 Dump Tipping Truck

Products

Sinotruk HOWO 30T-40T 8X4 Dump Tipping Truck

share to:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest

HOWO Factory direct standard 8X4 front lifting tipper dump truck is available from SUPREME TRAILER. Howo 8×4 front lifting dump truck can carry about 45 tons cargo which can meet your needs. The durable and cost-effective tipper is your best choice.

Sinotruk HOWO 30T-40T 8X4 Dump Tipping Truck

1.Product Introduction

HOWO Factory direct standard 8X4 front lifting tipper dump truck is available from SUPREME TRAILER. Howo 8×4 front lifting dump truck can carry about 45 tons cargo which can meet your needs. The durable and cost-effective tipper is your best choice.

2.Product Details

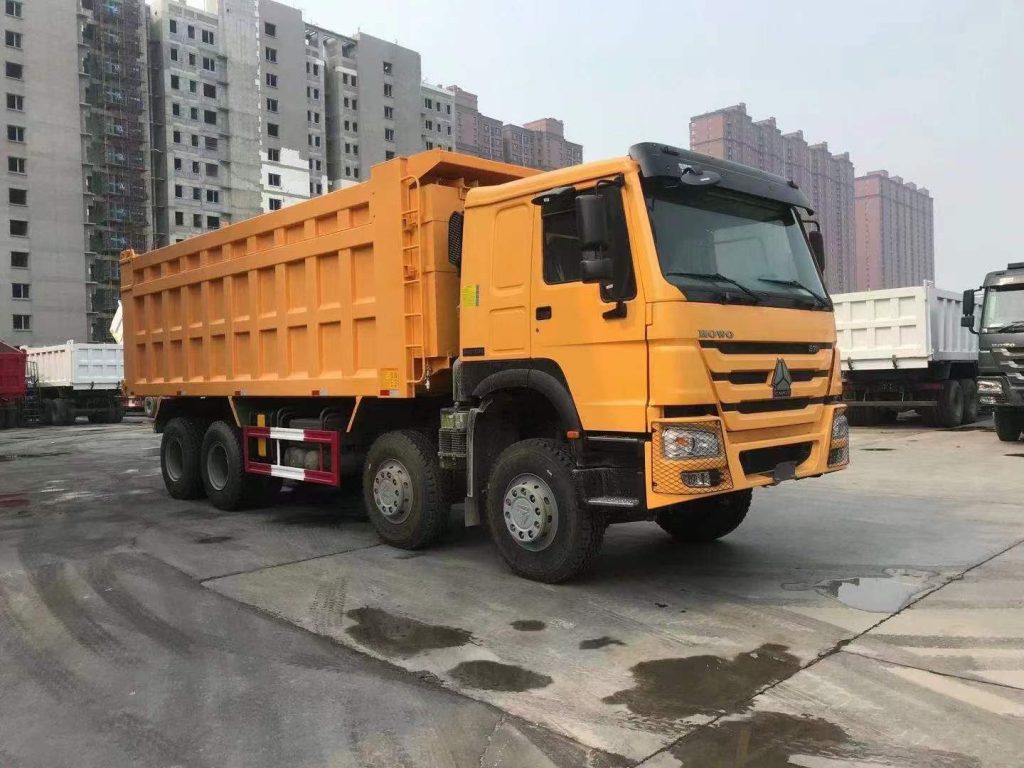

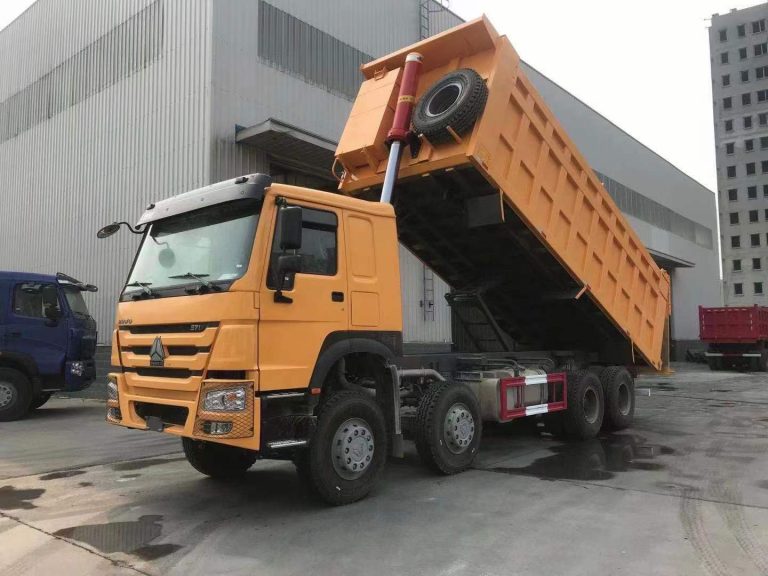

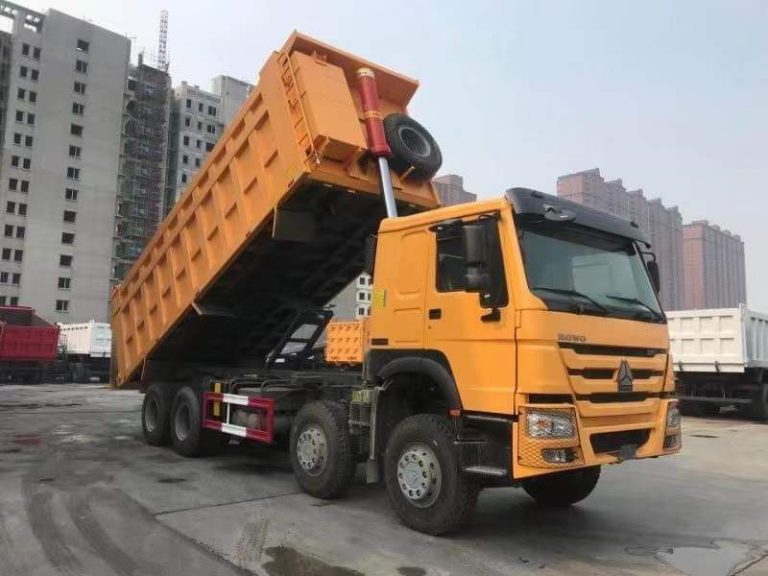

Sinotruk HOWO 30T-40T 8X4  Dump Tipping Truck插图

3.Product Parameter (Specification)

Model Chassis model: ZZ3317N3867W
Engine WD615.47(371Hp at 2200r/min, Euro II)1500Nm at 1100-1600r/min
Clutch Single-plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance
Transmission HW19710, 10 forward and 2 reverse, manual, With HW50 PTO.
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle HF9 (9000Kg)
Rear Axles HC16 (2x16000Kg) Ratio: 5.73
Chassis Enhanced version of multiple-leaf spring (Front 11 pieces, Mid 11 pieces, Rear 12 pieces)
Fuel tank With one 300 L fuel tank with locking fuel cap
Steering ZF power steering, model ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2

Brakes With high bumper

Auxiliary brake: engine exhaust brake

Without Climate package

Without ABS (Optional)

Wheel & Tires Rims width: 8.5

Tires: 12.00R20

Cab HW76 cab, one sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap.

With air conditioner (optional)

Electrics Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW

Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Cargo Body 7800x2300x1500mm, Front lifting, bottom 8mm, side 6mm
Dimensions in mm Wheel base

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle(o)

Departure angle(o)

Overall Dimension

1800+3800+1350

2022

1830

1500

2295

19

17

10745×3190/3406×2496(mm)

Weight in kg Net weight

Maximum load mass

Front axle loading capacity

Rear axle loading capacity

16000

34000

9000X2

16000×2

Performance Maximum driving speed(km/h)

Maximum grade ablility (%)

Minimum ground clearance(mm)

Minimum turning circle(m)

75

35

290

18



  1. Warranty
  2. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
    2. Other spare part could be supplied by OEM at cost prices.
    3. Regularly callback to know the vehicle’s working status.
    4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.

  1. 5. Advantages

1.Competitive Factory Price and Excellent Quality
2.More than 20 years’ experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers
