SINOTRUK 10 Wheels Fence Cargo Truck with Dolly Trailer

Product Parameters

HOWO CHASSIS

Model: ZZ1257N4347B1

Made Year: Brand New,

Wheelbase: 4300+1400mm

Cabin: HW76, one single sleeper, with air conditioner

Engine: SINOTRUK, WD615.47, 371hp, Euro II

Gearbox: HW19710, manual, 10 F & 2 R

Front axle: VGD95, 9500kg, drum brake

Rear axle: HC16, 2*16000kg, drum brake

Tires: 12.00R20, 11 pcs (including one spare tire)

Fuel tank: 400L+400L

ABS: 4S/4M

FENCE CARGO

Box Size(L*W*H): 7100*2600*1600 (mm) (Customized Sizes or Designed according to customers’ needs);

Fence Structure: 900mm side wall + 100mm space + 440mm fence;

Platform: 4mm thickness pattern plate；

Color: Optional

DRAWBAR TRAILER

Loading Capacity: 30T

Dimension(L*W*H):  9800*2600*3060 (mm); (Customized Sizes or Designed according to customers’ needs);

Turntable：20T double bead turntable

Platform: 4mm thickness pattern plate；

Axle：BPW 13 T, 10 holes;

Suspension: Three-axis German type suspension

Leaf spring: 100(W)mm *12mm(Thickness)*12 layers, 6 sets;

Tires: 12.00R20,12pcs

Rim: 9.00-20,12 pcs

ABS: Optional

Brake system: WABCO RE 6 relay valve; T30/30+T30 air chamber, 40L air tanks;

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable.

Color: Optional

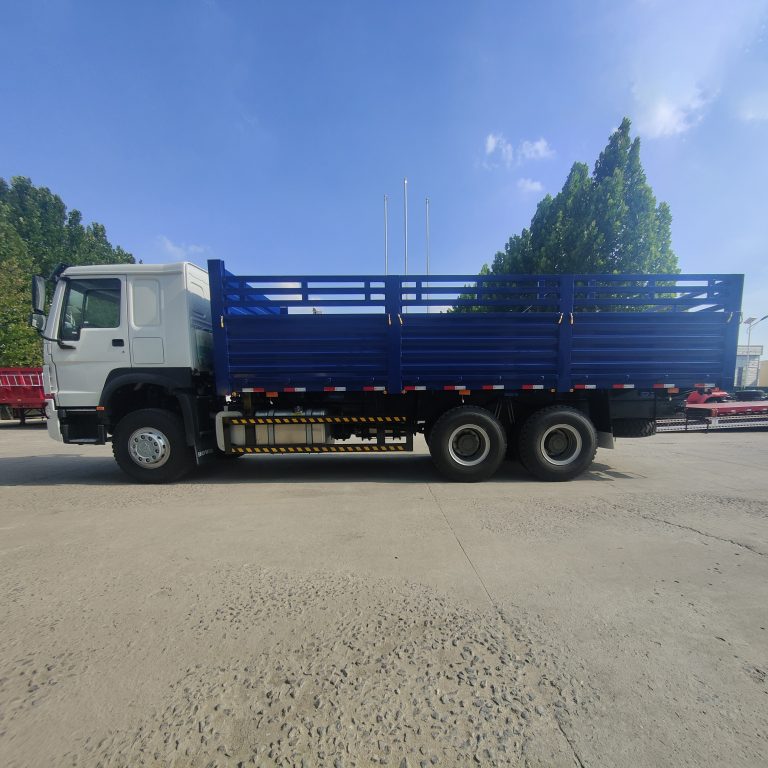

HOWO 10 wheels 371hp cargo trucks play an increasingly important role in the fields of agricultural products, daily necessities, express delivery, and cold chain transportation, which is playing an very significant role in logistics transportation market all over the world. This howo 6×4 cargo truck is loved by many African customers because of its large cargo capacity. In order to meet the market demand, SINOTRUK has launched a variety of competitive truck models through the continuous upgrading of products and services to meet the diverse needs of customers.

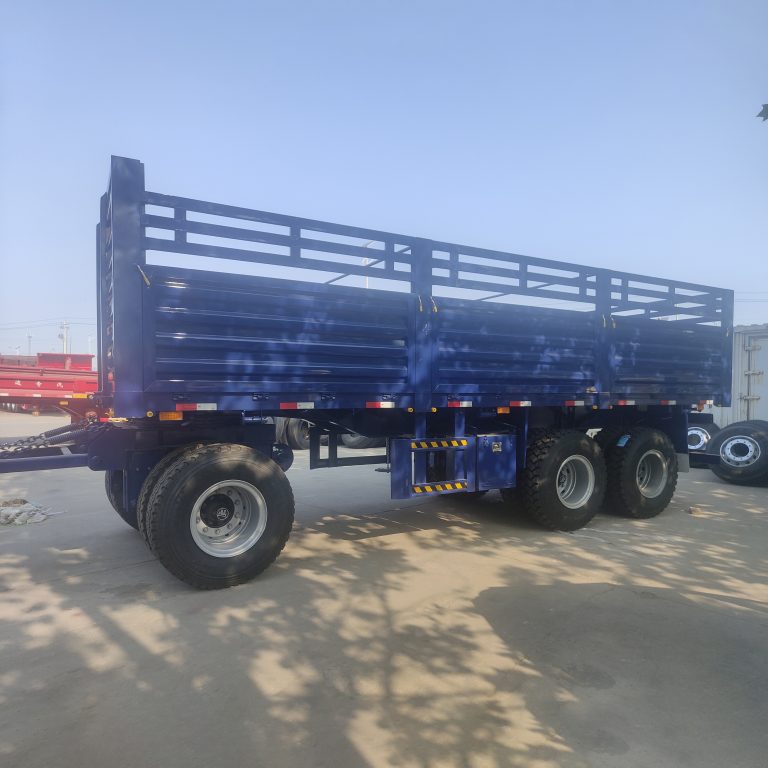

LUCKIN 3 Axles Fence Drawbar Dolly Full Trailer is a self-supporting, unpowered trailer which has at least one axle at either end of the trailer. The front axle is connected to a drawbar and the axle pivots to provide steering, following the direction in which the drawbar is pulled. This is sometimes called a dolly.The key differences between a semitrailer and a drawbar trailer are that a semitrailer does not have wheels at the front, it has a kingpin which fits inside a fifth-wheel or turntable coupling, and the front of the trailer is supported on the rear wheels of the prime mover.
