Howo 8×4 Cement Concrete Mixer Truck

Products

Howo 8x4 Cement Concrete Mixer Truck

share to:

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest

The Concrete  mixer truck is a special truck used to transport concrete for construction; because of its shape, it is also often called a snail truck and an olive truck. These trucks are equipped with cylindrical mixing drums to carry the mixed concrete.

Lead Time:20 days

Shipping Port:Any Port Of China

Payment:T/T;L/C

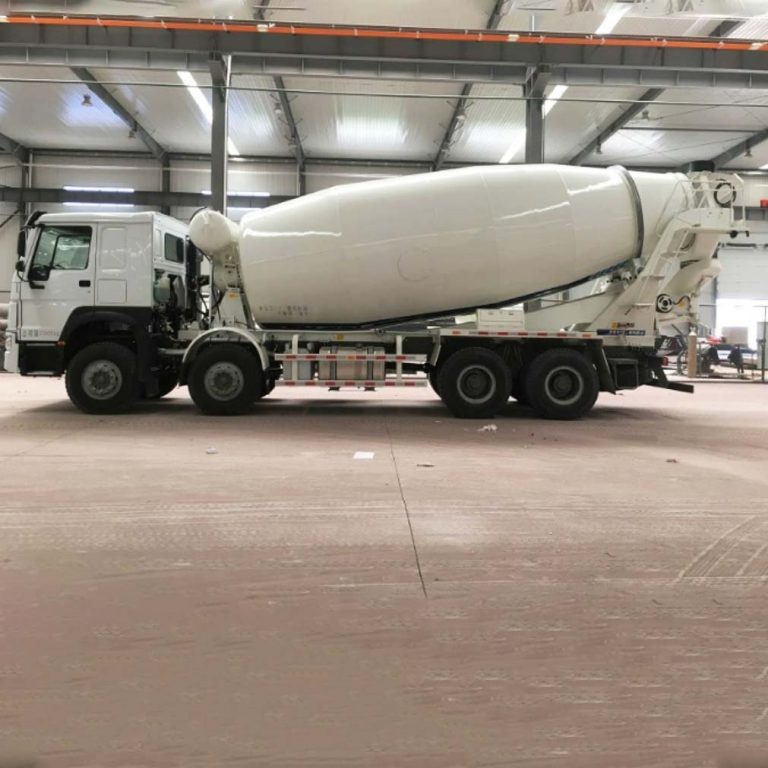

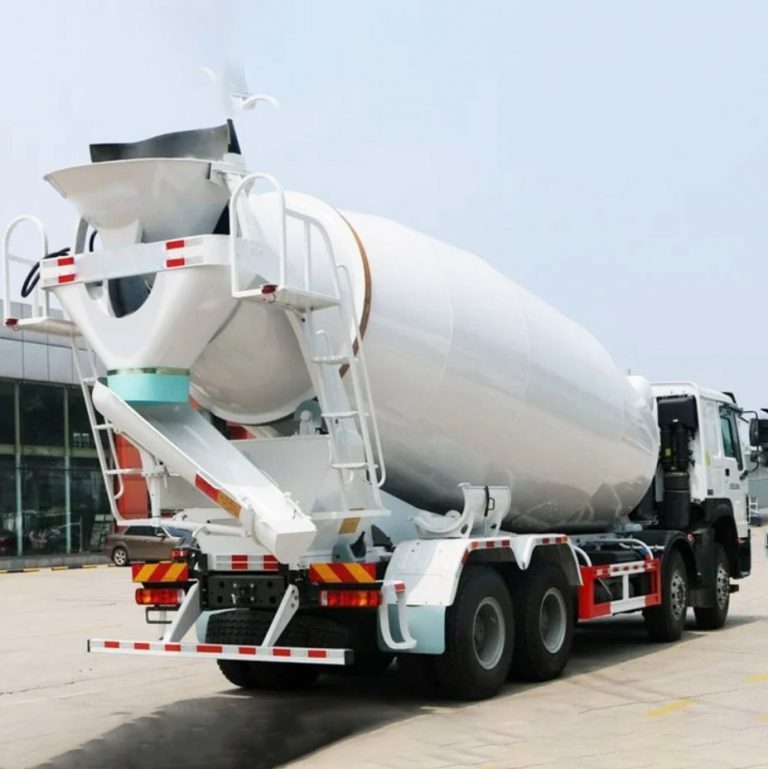

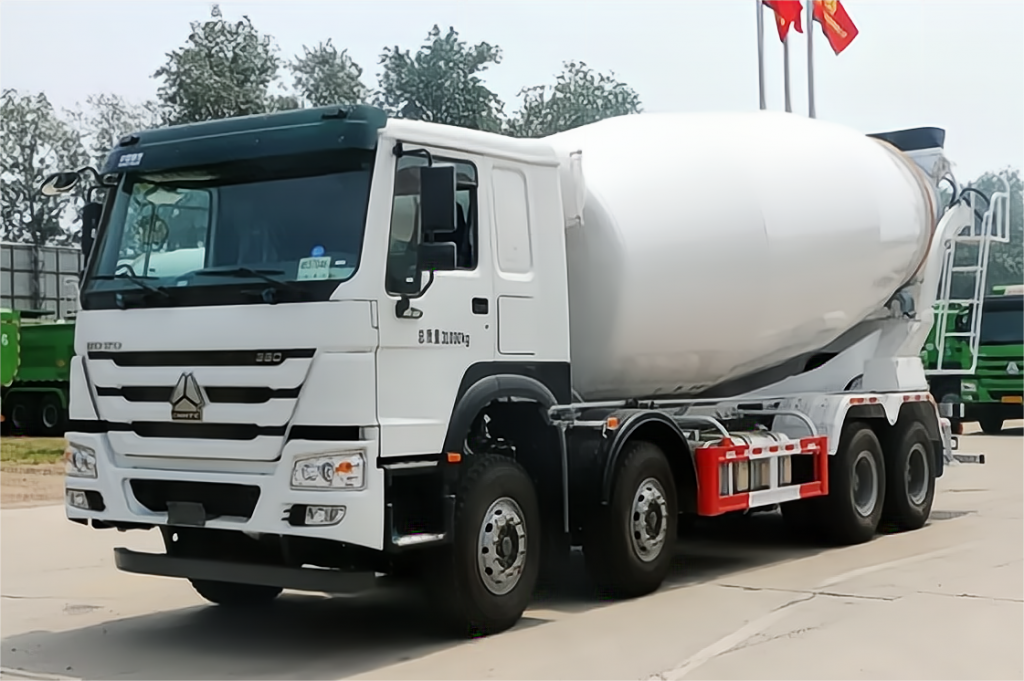

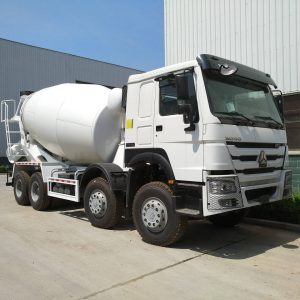

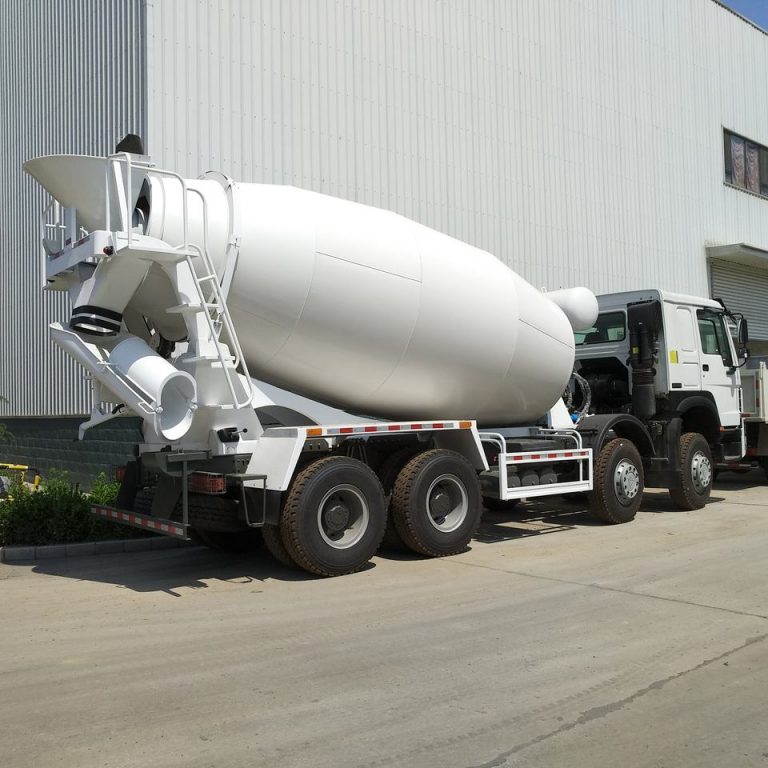

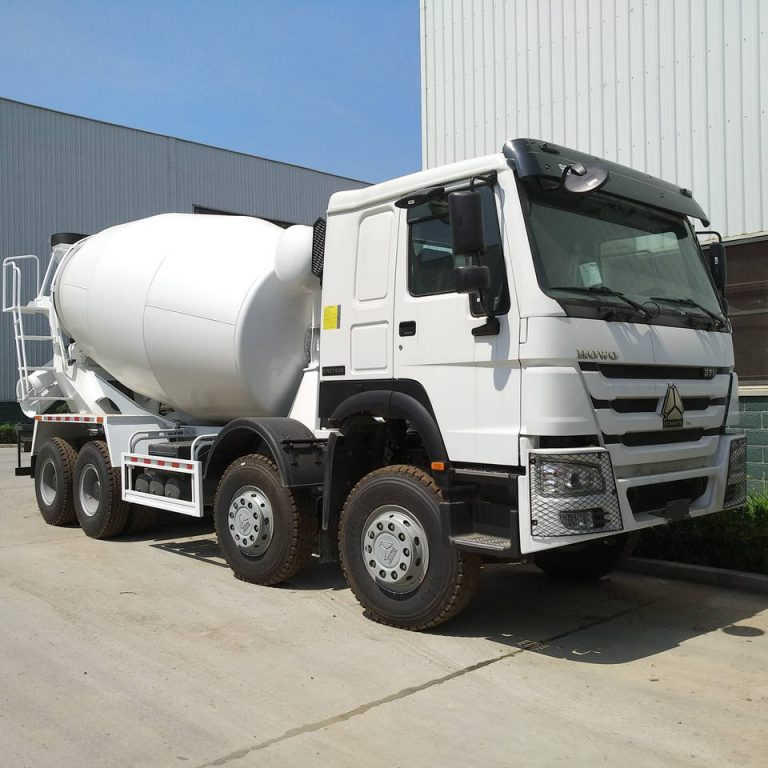

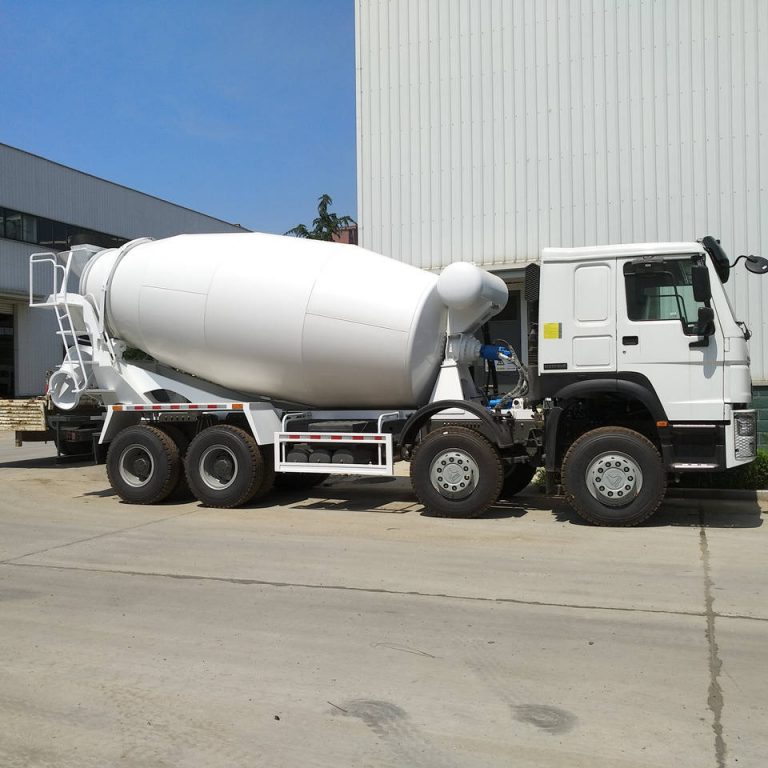

Howo 8×4 Cement Concrete Mixer Truck

Howo 8×4 Cement Concrete Mixer Truck插图

Product Parameters
Sinotruk Howo 8×4 Mixer Truck – 16 CBM
Overall Dimension:10860*2550*4000 mm

Fuel Tank:300 L

Tank Body: 16 Cubic Meters

Mixer Pump: Eton (USA Brand)

Motor: Eton (USA Brand)

Speed Reducer: Bonfiglioli (Italy Brand)

Engine:Diesel 4-stroke direct injection diesel engine-6-cylinder in-line with water cooling, turbo-charging and intercooling
Emission Standard: Euro 2
Displacement: 9.726 L
Transmission:HW15710, 10F & 2R, with PTO
Steering: ZF power steering, model ZF8118, hydraulic steering with power assistance
Front Axle:HF9, 2×9000 KGS-Steering with double T-cross section beam
Rear Axle:HC16, 2×16000 KGS-Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Propeller Shaft:Double universal joint propeller shaft with gear-shaped coupling flange
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension: 10 leaf semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 leaf semi-elliptic springs, bogie spring and stabilizer

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Tyres:12.00R20, radial tyres with one spare tyre.(Optional: 315/80R22.5, tubeless tyres)

Product Introduction

Special concrete transport trucks (in-transit mixers) are made to mix concrete and transp port it to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. They ca an also be loaded from a “central mix” plant with this process, the material has already been mixed prior to loading.The concrete mix king transport truck maintains the material’s liquid state through agitation, or turning of the drum, until delivery.



Related Products

1

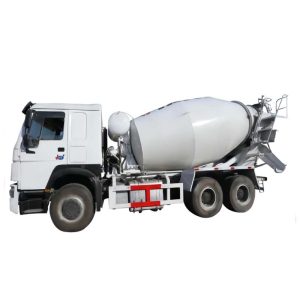

Sinotruk HOWO 6X4 10cbm Concrete Mixer Cement Equipment Tank Truck
