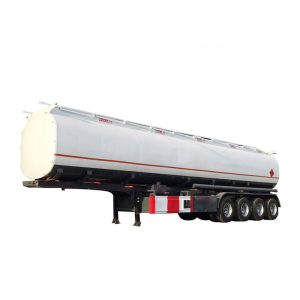

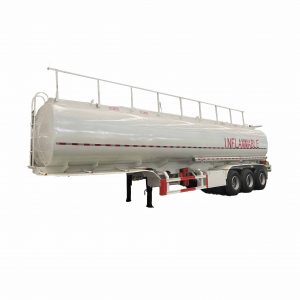

Carbon Steel Fuel Tanker Smei Trailer

Product Parameters

Dimension(L*W*H): 11850*2500*3650 (mm) (Customized Sizes or Designed according to customers’ needs)

Compartments: 4 (Customizable)

Shape：Square, Round (Customizable)

Valid Volume (L): 40000 (Customizable)

Body Steel Material: Q345B / 5mm

End Plates: Q345B / 6mm, by punching

Resistant Wave Plates: Q345B / 5mm

Partition Chamber Plates: Q345B / 6mm

Pneumatic Control system: 1set Pneumatic Control combined switch and1unit emergency switch

Discharging Pipe: 2 pcs, 6m/pc

Kingpin: JOST 3.5”/2.5” bolt-in type

Landing gear: JOST brand 19” Double-speed

Tires: 11R22.5 /12R22.5/315/85R22.5

Axle: FUWA/BPW/ZY or other Brands

Suspension: Mechanical suspension with springs/Air suspension/Bogie suspension

Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Product Introduction

LUCKIN VEHICLE supply Bogie Suspension Petrol Fuel Tanker Semi Trailer, which is normally used to transport fuel, gasoline, diesel, crude oil, palm oil, water, liquid chemicals, edible oil, etc. And you can customize fuel tank trailers as you want, such as sizes, shape, materials, axle numbers and so on.

LUCKIN Bogie Suspension Petrol Fuel Tanker Semi Trailers adopt advanced design concept and production Process to fabric the most durable tank trailers especially for African Market considering the road condition and customer’s special requirements. And its distortion resistance, earthquake resistance and bump are very helpful for your transport safety.
