Lead Time：20 days
Shipping Port：Any Port Of China
Payment：T/T;L/C
Product Parameters
| Model | Capacity(kg) | Track(mm) | Axle Tube (mm) | PCD(mm) | Total Length
(mm) |
Recommended Wheel |
| QLV-AT llT | 11000 | 1820 | 0127 | 335 | 2165 | 7.5V-20 |
| QLV-AT13T | 13000 | 1840 | 0127 | 335 | 2185 | 7.5V-20 |
| QLV-AT13T | 13000 | 1840 | -150 | 335 | 2185 | 7.5V-20 |
| QLV-AT14T | 14000 | 1840 | □150 | 335 | 2185 | 7.5V-20 |
| QLV-AT16T | 16000 | 1850 | -150 | 335 | 2205 | 8.00V-20 |
| QLV-AT20T | 20000 | 1850 | -150 | 335 | 2252 | 8.00V-20 |
Product Instruction
One high-quality low-alloy axde tube has strong carrying capacity and high bending strength. . The axle tube tempered as a whole and then quenching optimized which made by finishing high-precision machinery. Environmentally friendly Non-asbestos brake shoe which increase the wear life of more than 25%.

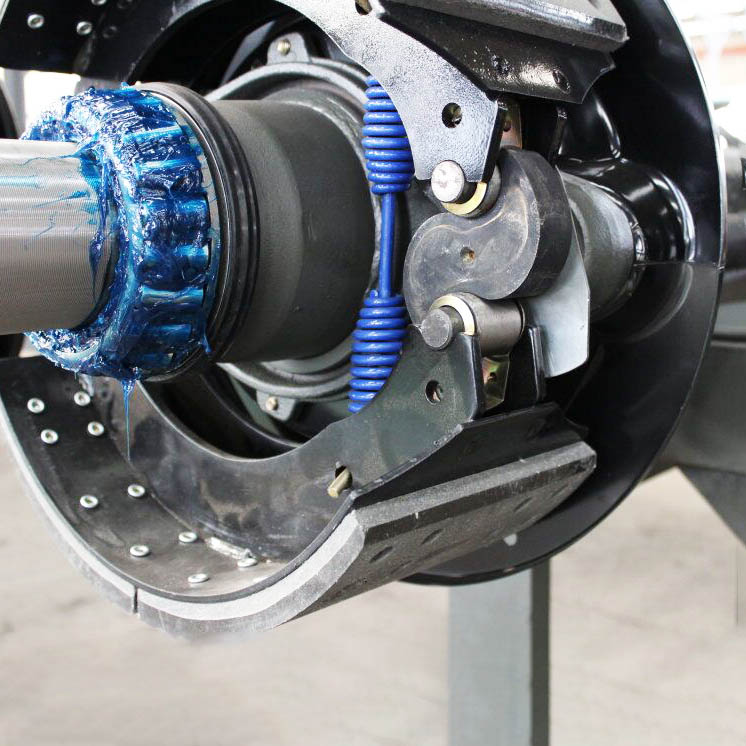

Brake components have strong interchangeability, S-camshaft, so that have more flexible and reliable brake action . Adopt Mobil XHP222 grease which has maintenance-free longer. · Adopt heavy-duty bearings which specially used for heavy vehicles have strong interchangeability. The unique beauty with O-ring of the steel wheel cover has special good performance .ABS anti-lock brake system is optional.
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
