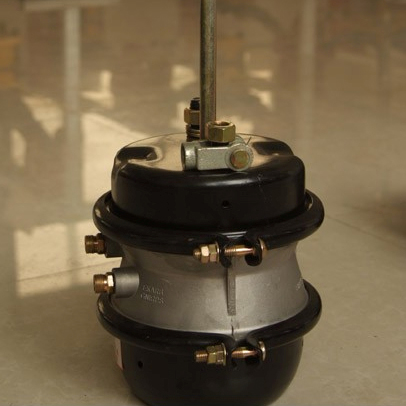

The combined spring brake air chamber is used to provide braking driving force for the wheel brakes. It consists of two parts: the diaphragm chamber, which is used for service braking; the spring chamber, which is used for auxiliary braking and parking brake. Among them, the spring cavity part is characterized by an overtravel function and a mechanical release braking device.
| Stroke | 64mm |
| Port Thread | M16*1.5 or 3/8″NPT |
| Bolt Thread | M16*1.5 or 5/8″UNC |
| Bolt Centre | 120.7mm |
| Push Rod Thread | M16*1.5 or 5/8″UNF |
| Push Rod Length | 285mm |
| Materials | Metal Steel Aluminium Rubber Copper |
| Packing | 1pc/pp bag, 2pcs/carton box, can packaged with pallet |
| OEM | Bendix, BPW, Haldex, Meritor, MGM, WABCO etc. |
| Size | OEM Standard Sizes |
| Applicable models | Heavy Duty Truck, Trailer, Semi, Bus,Commercial Vehicle etc. |
| Color | According to customer’s requirement |
LUCKIN VEHICLE promises that “Good is not enough when better is available.”We sincerely look forward to your visiting and calling.
