90*13mm 10Piece High Strength Leaf Spring For Semi Trailers

Home/

Products

90*13mm 10Piece High Strength Leaf Spring For Semi Trailers

share to:

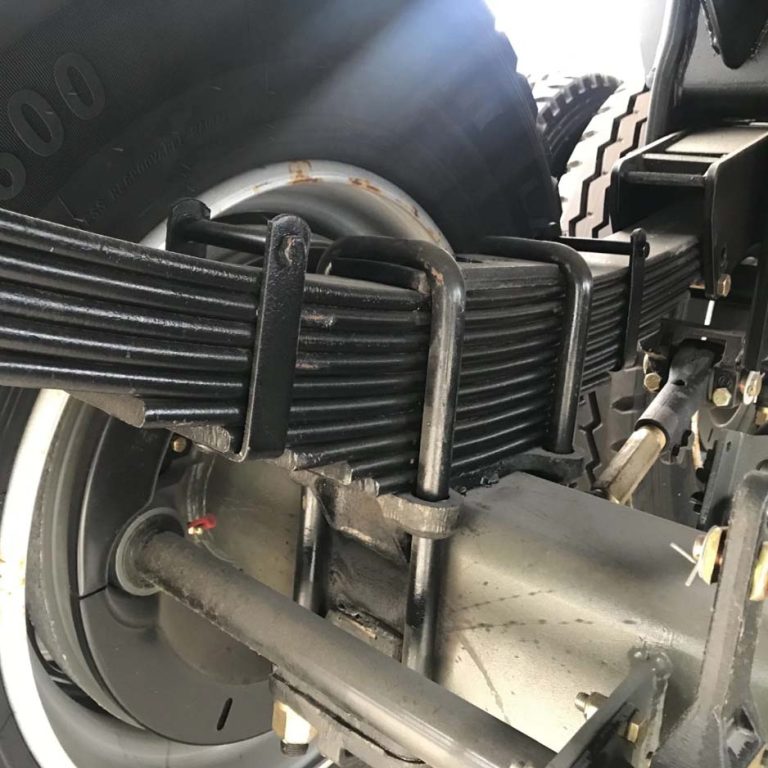

Usage: Leaf spring for truck, full trailer, semi-trailer;
Type: Same wide or parabolic spring;
Size: 75mm, 90mm, 100mm, 120mm width.
Certificate: ISO, TS16949 Certificate

Characteristics:1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance premium non-asbestos brake linings, estend serbice life.
4. Easy for ABS installation.
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap habe O rings, high property for sealing.
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.

Model	Chord length (mm)	Chord height (mm)	Total pieces	Thickness/pc (mm)	Width (mm)	Assembly weight (kg)
BH001	1120	66.25	9	16	90	86
BH002	1180	125	12	12	100	86
BH003	1200	68.5	12	12	100	82.5
24006-2-020	1637	96	19	14-18	90	265
28-000-003	1765	114	11	16	120	220
32006-202	1820	110	17	14-20	120	356
Note: The SUP6, SUP7 and SUP9 standard steels are usually adopted. We can also use other materials if you want.

FAQ:

Q1: How do you guarantee quality?
A: We take quality inspect records from raw material to finished product.
The former department bear 100% responsibility for next process.

Q2: Can you produce if we have samples only?
A: Our technical ability is strong enough to deal with different types of spring.
Sample drawing and customers’ interests will be protected well.

Q3: Is it possible to have sample for quality testing?
A: Same or similar sample are available for free.

Q4: What is your MOQ?
A: For common material size, MOQ requires 30~50 pcs;
For special material size, Moq requires 3 ton or more;

Q5: What about the package of the product?
A:The goods will be packed according to your requirements and in well protection before delivery.

Q6: What is your terms of payment?
A: T/T, L/C, Western Union,
