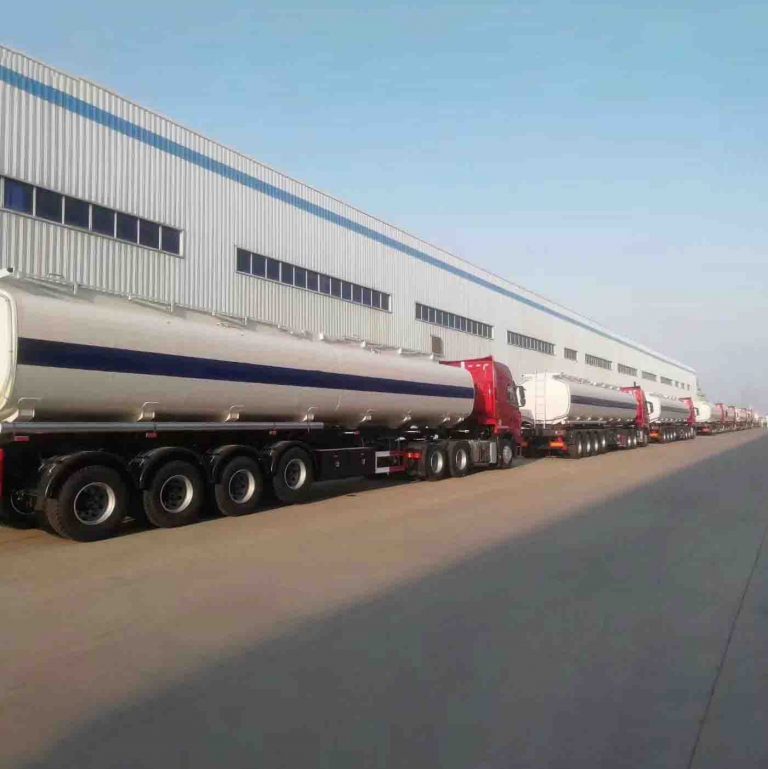

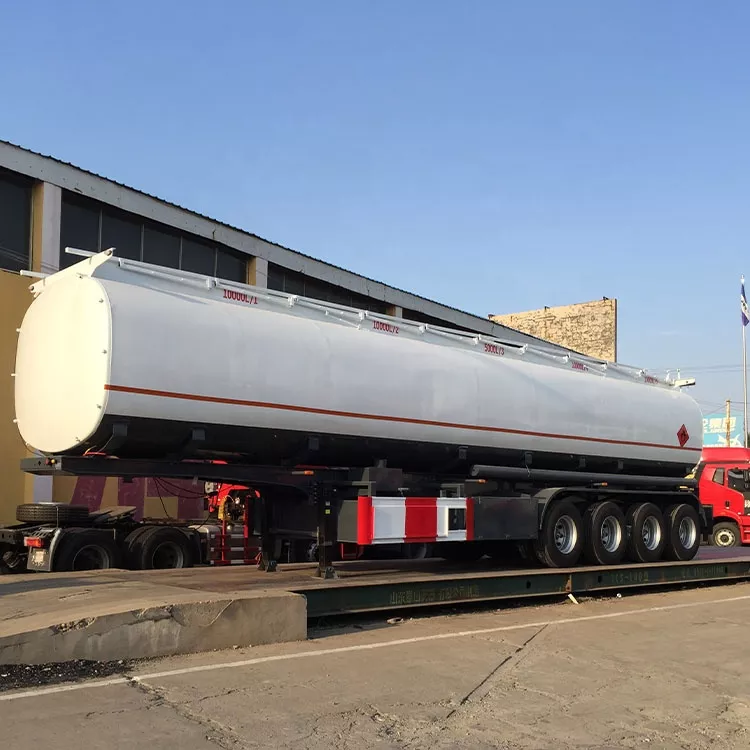

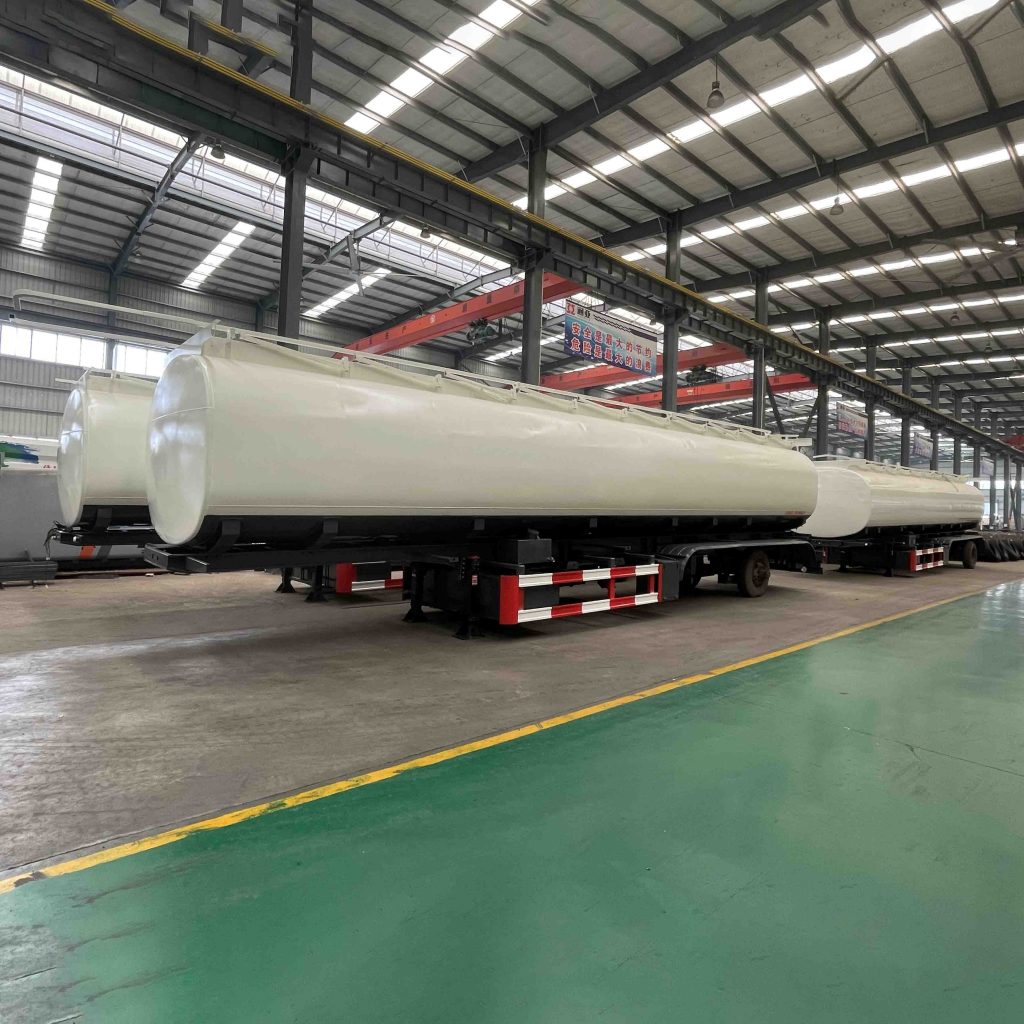

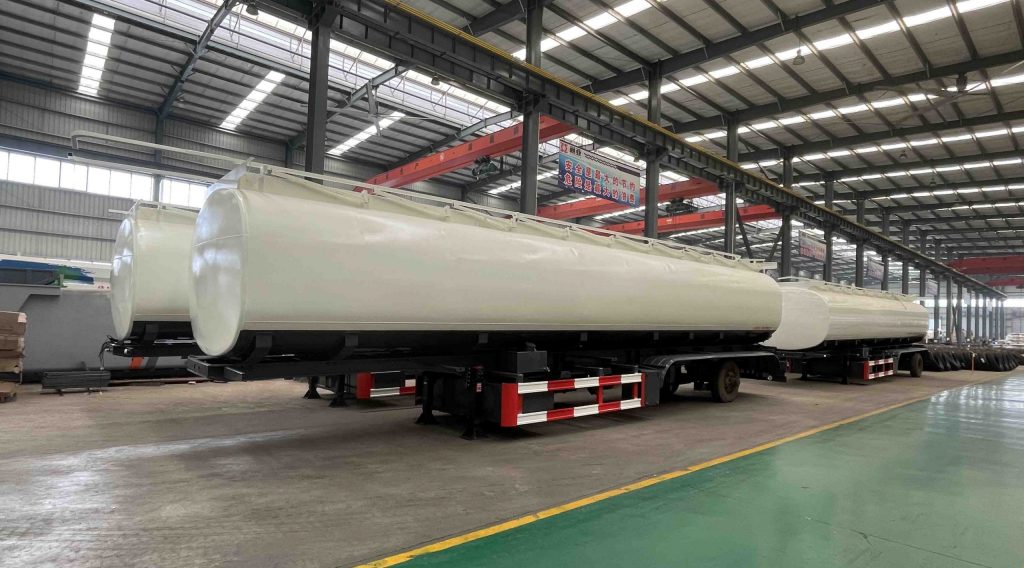

45000L 4 Axles Oil Tanker Semi Trailer

Product Parameters:

Shape：Double D or Round shape

Dimension：12300mm×2500mm×3800mm (The exact size depends on the final design and requirements from customers.)

Total Volume ( m3 )：45 m³

Compartments：3   15,000L-15,000L-15,000L

Tanker Body Material：5 mm thickness，Q345

End Plate: 6 mm thickness，Q345

Wave board: 5 mm thickness，Q345

Manhole Cover: 3pcs, 500mm(diameter), Europe type Aluminum alloy material

Bottom Valve: 3pcs, 4 inches Europe type subsea valve

Discharging Valve: 3pcs, 2.5 inches Europe type outlet

Discharging Pipe: 2.5″ rubber hose, 2 pcs , 6m/each unit

Pump System: Optional

Walkway: Anti-skid walkway on top of the tank, with foldable handrail on both sides of the manhole covers.

Ladder: Anti-skid access ladder fitted at front/back head of the tank.

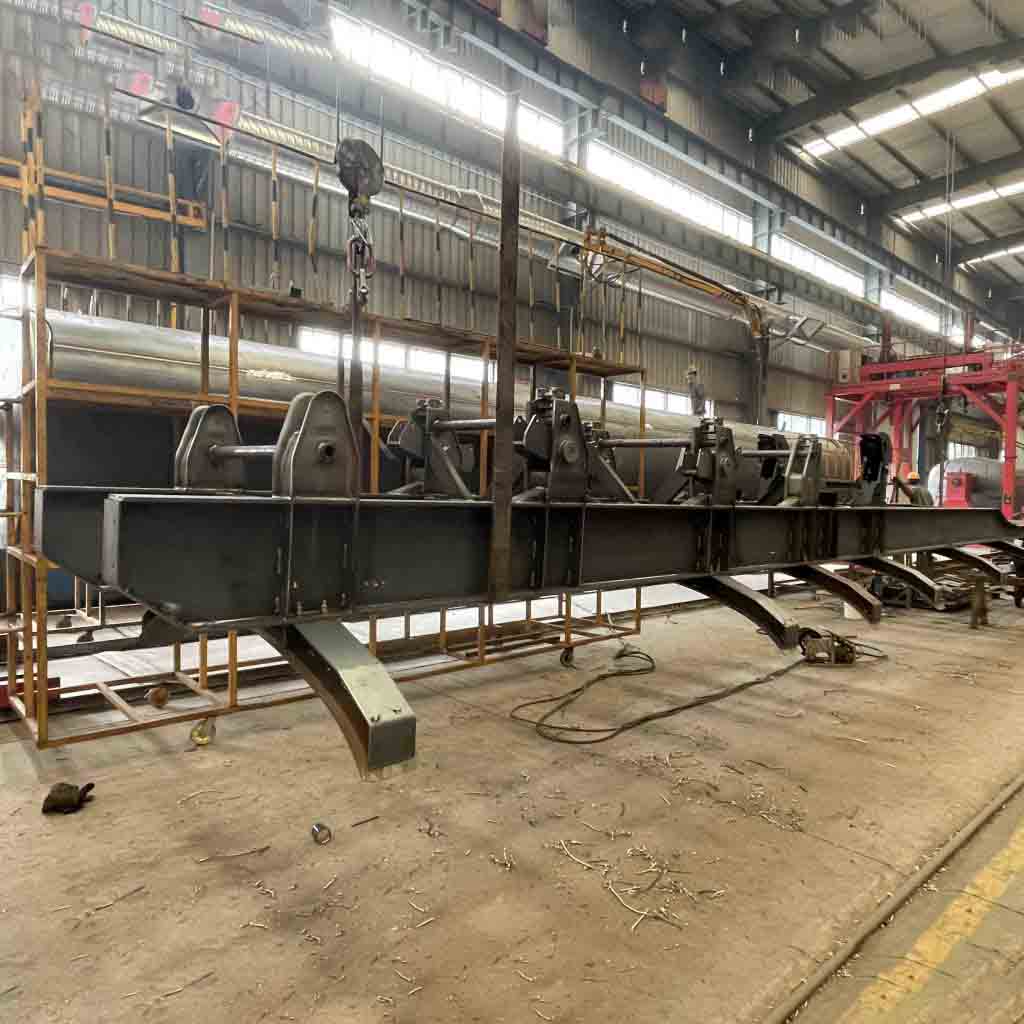

Main Beams: Welded design，Q345

Axle: 4 axles, 13 tons

Landing Gear: JOST E100, double speed type

King Pin: JOST 2.0 or 3.5 inches bolt-in king pin

Suspension: Mechanical suspensions

Pneumatic Braking System: WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank

Rim: 9.0-22.5, 13pcs

Tire: Triangle brand 12R22.5，13pcs

ABS: Optional

Accessories: One standard tool box, one spare tire carrier

Shipping Terms: By bulk vessel

Product Introduction

LUCKIN 45000L 4 Axles Oil Tanker Semi Trailers adopt advanced design concept and production Process to fabric the most durable tank trailers especially for African Market considering the road condition and customer’s special requirements. And its distortion resistance, earthquake resistance and bump are very helpful for your transport safety.

LUCKIN VEHICLE offers carbon steel, stainless steel or aluminum material tanker trailers. The volume of the 3 Axle Oil Tanker Trailers can be customized, such as 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. Also with different compartments, like two, three, four, or more compartments, you can load different liquids as you want separately.
