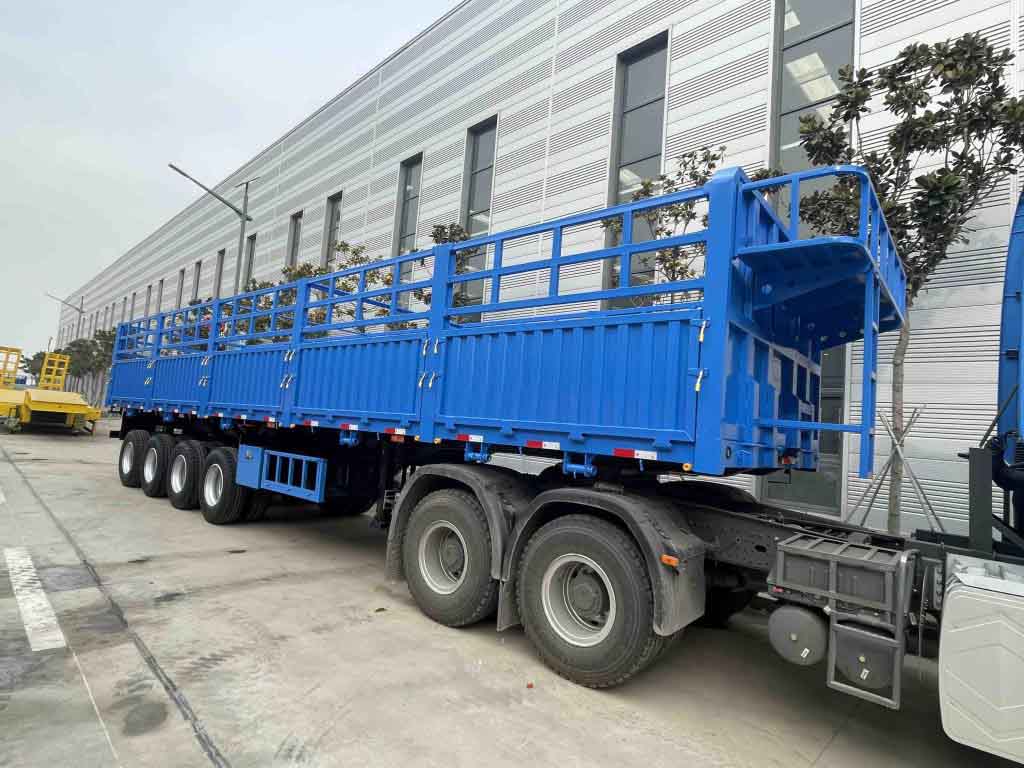

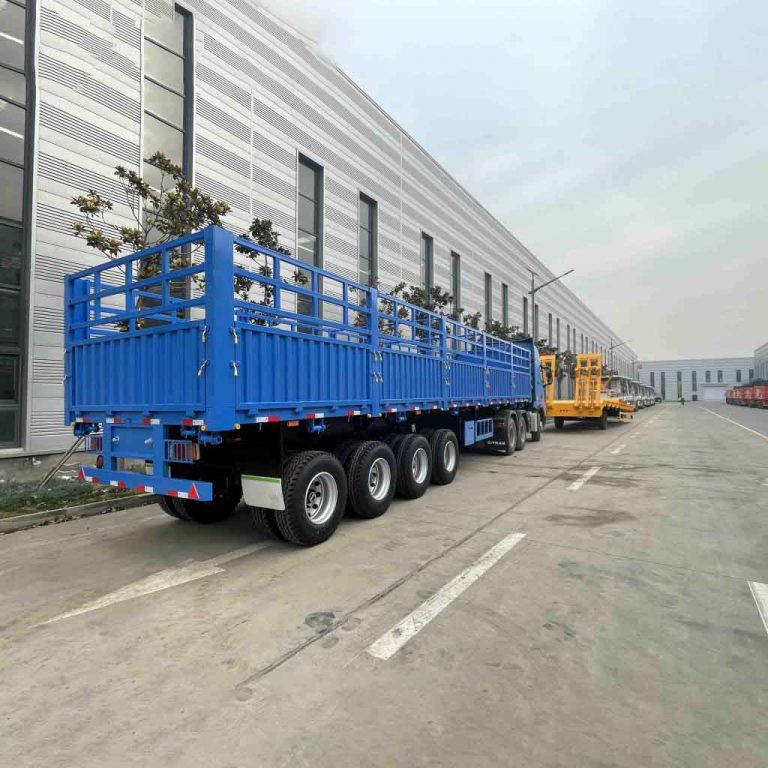

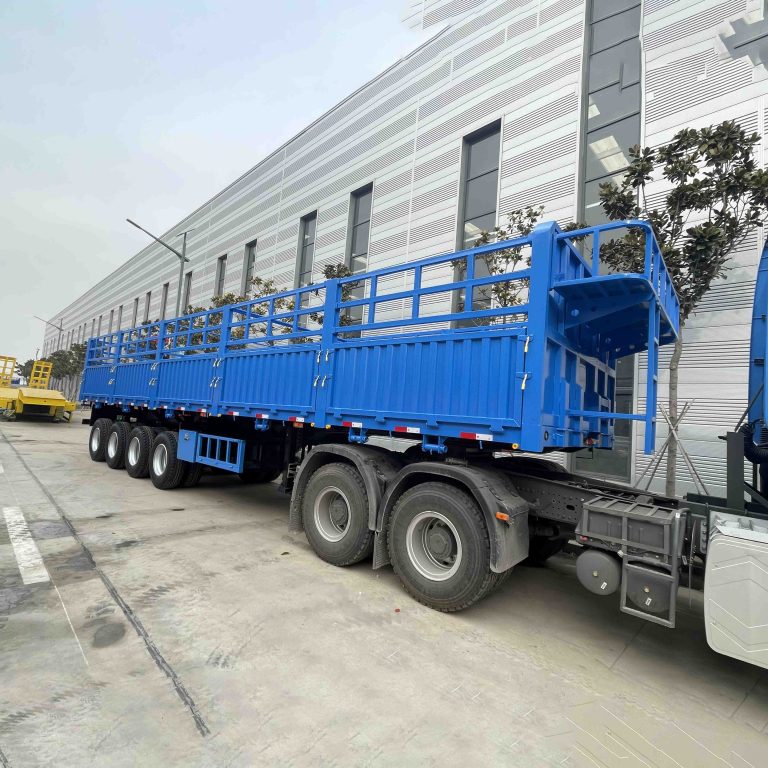

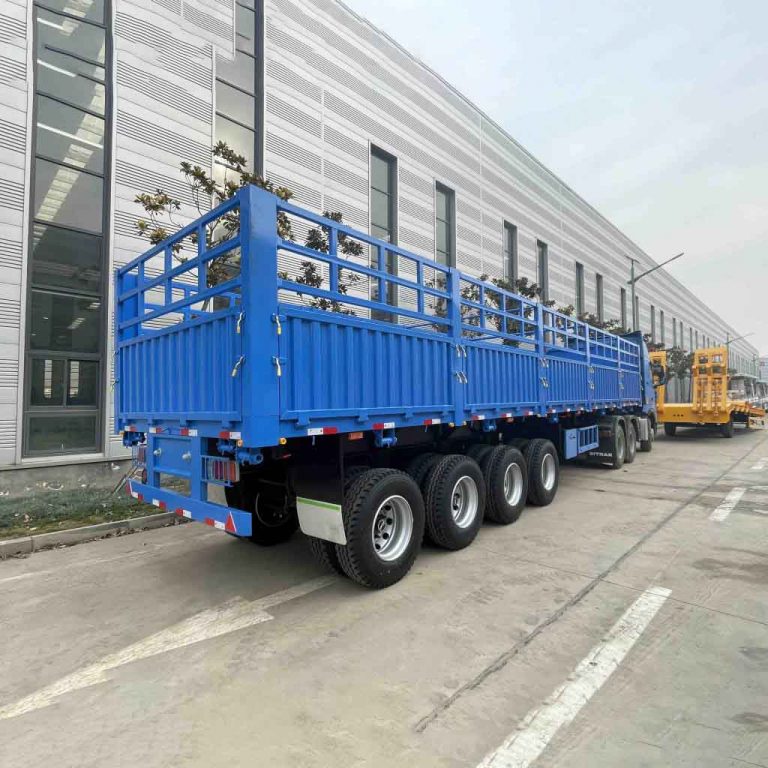

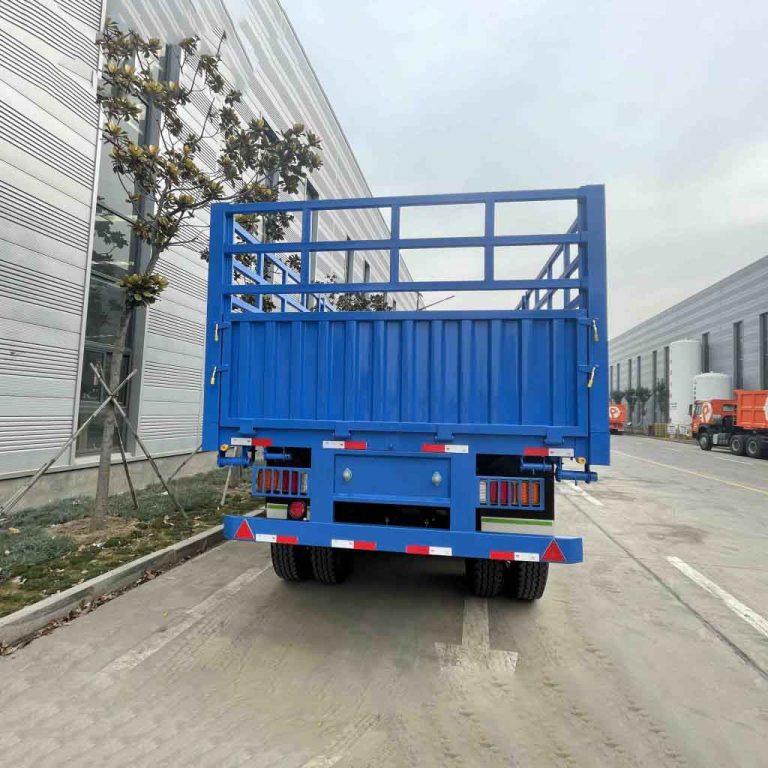

4 Axles Drop Side Fence Semi Trailer for Negria Market

Product Parameters

Dimension(mm): 13000x2500x3000mm (Customized Sizes or Designed according to customers’ needs)

Trailer Sides: 1400mm height (Customized by you)

Loading capacity(ton): 60T

Axles: 4 axles, 13T, FUWA/ BPW Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Suspension: Mechanical/Bogie/Airbag suspension

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand C200T

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valves; T30/30+T30 spring braking chamber (TKL brand), 45L air tank

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Painting: S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting

Accessory: One tool box; one set of standard tools.

Product Introduction

LUCKIN VEHICLE supply 4 Axles Drop Side Trailer with 1000mm Height Side Walls, who has a pallet structure and wide range of uses. It is mainly suitable for medium and long-distance transportation of medium, heavy and bulk goods, such as grain, bagged cement, ect.

With 12 container locks on the platform, LUCKIN Drop Side Semi Trailer can also load and transport 1X40HQ, 2X20HC or only 1 units 20HC one time when you take off all the side walls and pillars around the trailer.

The trailer’s side panels can be opened for easier unloading and the shape of the side panels can be customized. Drop Side Semi Trailer has become the first choice for medium and long-distance freight vehicles based on its strong applicability, and it becomes the first choice for medium and long-distance freight vehicle for a lot of transport companies in the logistics industry.

Mature Welding Process: LUCKIN VEHICE adopts automatic submerged arc welding method to weld the main  beam. The longitudinal beam is completed by automatic tracking submerged arc welding machine. All components are shot peening to improve paint adhesion and are painted prior to assembly, making the main beam stronger and more durable.

Reliable Materials:We adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. Besides, all the main parts, used in our trailers, must be processed with advanced equipment and have good reputations in the market.

Mature Design and Manufacture:We would like to design the trailer according to our customers’ needs and special using conditions. Also, we would consider more than what them based on their final usage, and provide customers with reasonable suggestions when they are hesitating.

Rich experience:More than 20 years of experiences in producing and exporting trailers and other goods, we have helped hundreds of customers in more than 35 countries in Africa and Southeast Asia.

Quality Assurance: We offer 2 years’ warranty for chassis frames of our trailers and spare parts support services, would also be responsible for the damage of parts during normal use.

Customized Service: We support customized designing and production according to customers’ different needs and different road situations to match your usage in local.
