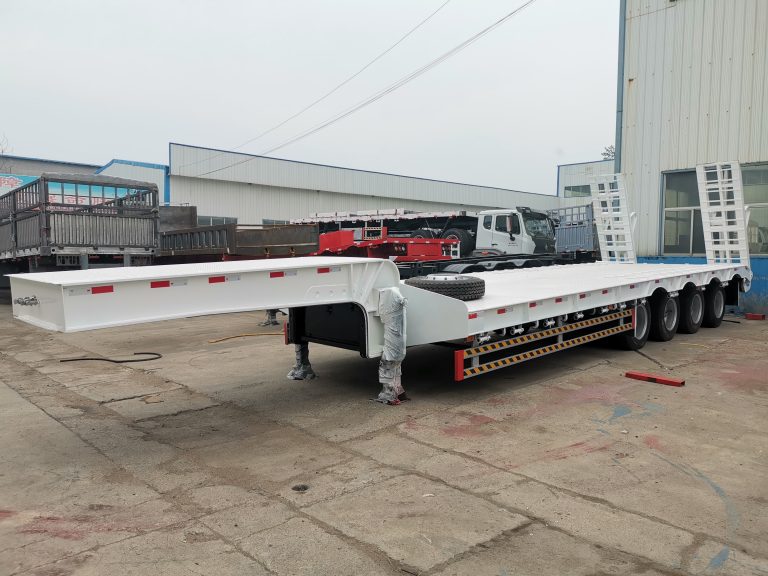

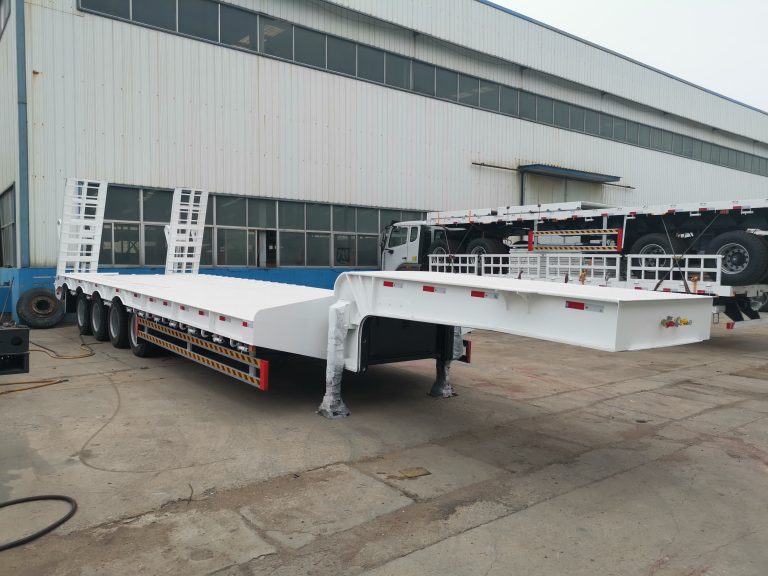

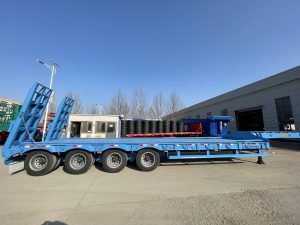

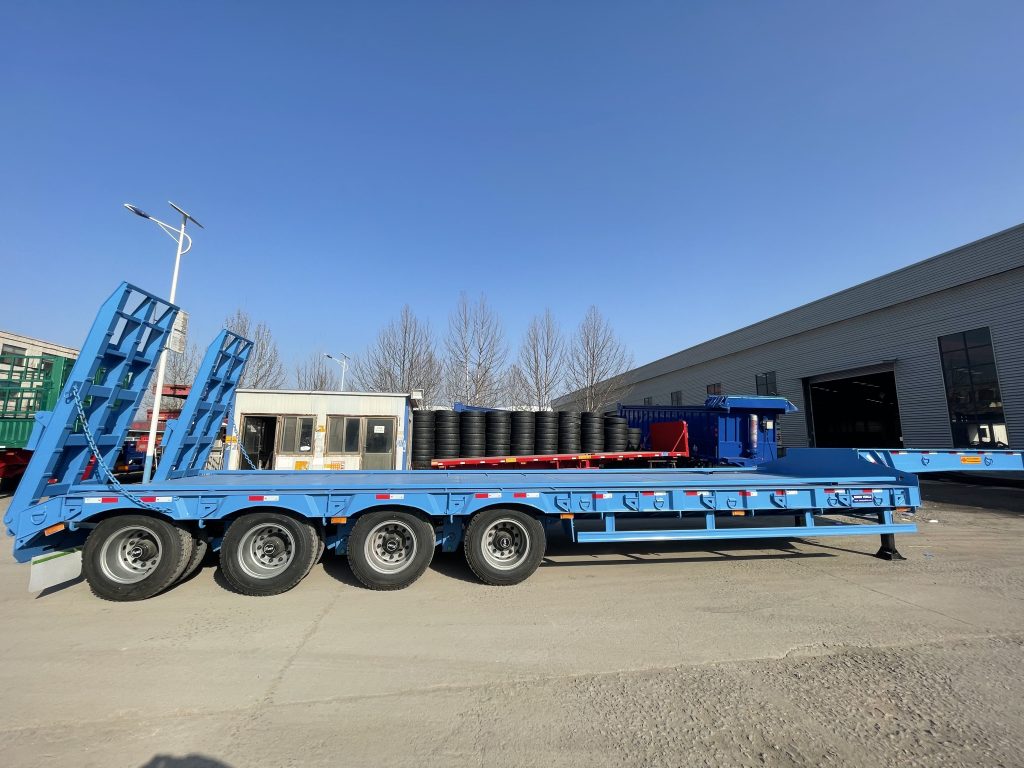

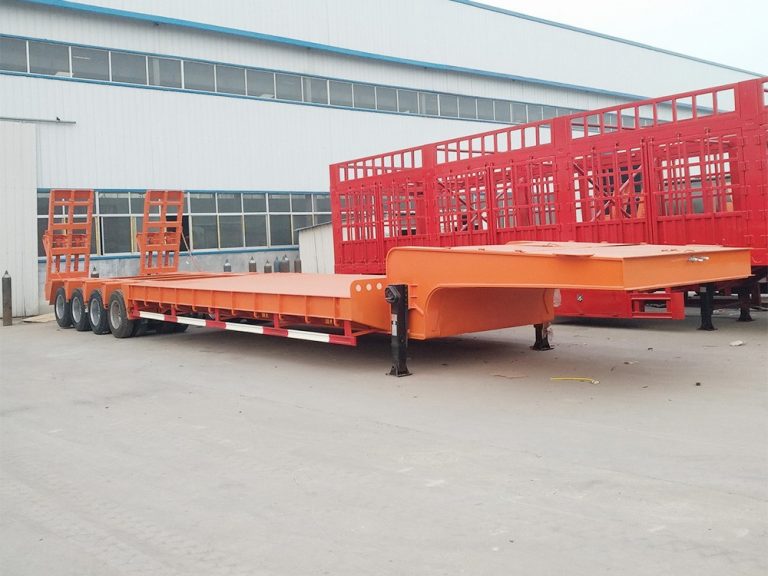

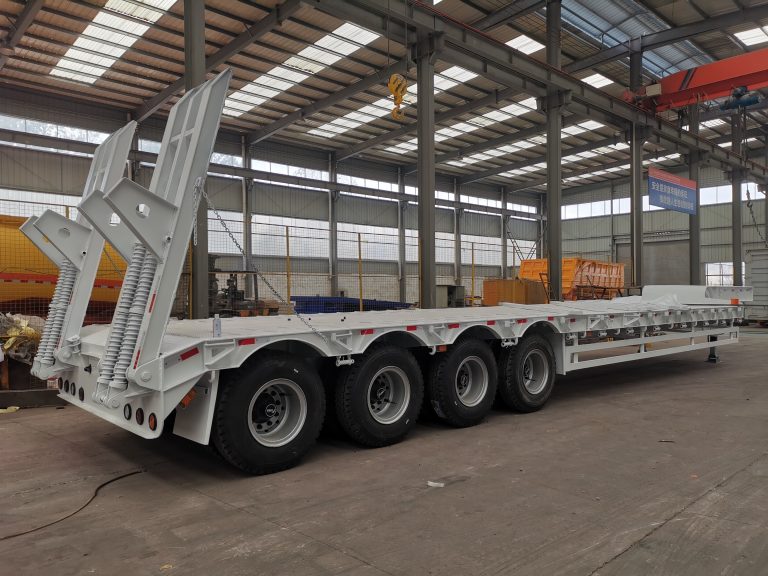

4 Axles 100-120T Lowbedlowboy Truck Semi Trailer

Product Parameter

Dimension(L*W*H): 14000*3000*1800 (mm) (Customized Sizes or Designed according to your needs)

Payload (Kg):100000-120000

Bottom Platform: 4/5/6mm thick checkered plate

Ladder: Enhanced mechanical ladders

Kingpin: JOST brand 2.0 or 3.5inches (bolted or welded type)

Landing gear: JOST brand 19”

Tires: 11R22.5 /12R22.5/11.00R20/12.00R20

Axle: FUWA/BPW/ZY or other Brands

Suspension: Heavy duty mechanical suspension with springs/Rigid suspension

Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Product Introduction

4 Axles 100-120T Lowbed Lowboy Truck Semi Trailer have a very low loading surface to ensure its stability in transportation, which is quite beneficial when loading heavy machines or vehicles, such as rail vehicles, construction machines, forestry machinery, mining machinery, ect.

With its low height loading surface and heavy capacity, LUCKIN lowbed semi trailer can help you on various of difficult transport solutions. Especially, we adopt high strength steels and optimal designs plans based on years of accumulated experience and force analysis to satisfy the high concentrated force, anti-bump and distortion resistance during its different loading situations.
