3 Axles 80T Lowbed Semi Trailer

1.Product Introduction

 LUCKIN VEHICLE 3 Axles 80T Lowbed Semi Trailer are commonly used to carry heavy duty construction machines and special vehicles, such as excavators, bulldozers, loaders, pavers, cranes, mining machinery, forestry machinery, ect.

With its low height loading surface and heavy capacity, SUPREME lowbed semi trailer can help you on various of difficult transport solutions. Especially, we adopt high strength steels and optimal designs plans based on years of accumulated experience and force analysis to satisfy the high concentrated force, anti-bump and distortion resistance during its different loading situations.

SUPREME Lowbed Semi Trailer is getting more and more popular in the market because of its durable quality and good reputations. And we have exported more than 1000 units various styles of lowboy semi-trailers all over the world.

2.Product Parameter (Specification)

 Dimension(L*W*H): 14000*3000*1700 (mm) (Customized Sizes or Designed according to your needs)

Payload (Kg): 40000 to 100000

Bottom Platform: 4/5/6mm thick checkered plate

Ladder: Enhanced mechanical ladders

Kingpin: JOST brand 2.0 or 3.5inches (bolted or welded type)

Landing gear: JOST brand 19”

Tires: 11R22.5 /12R22.5/11.00R20/12.00R20

Axle: FUWA/BPW/ZY or other Brands

Suspension: Heavy duty mechanical suspension with springs/Rigid suspension

Brake system: Dual line with WABCO brand Re-6 emergency relay valve, T30/30 air chamber, 45L air tanks

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

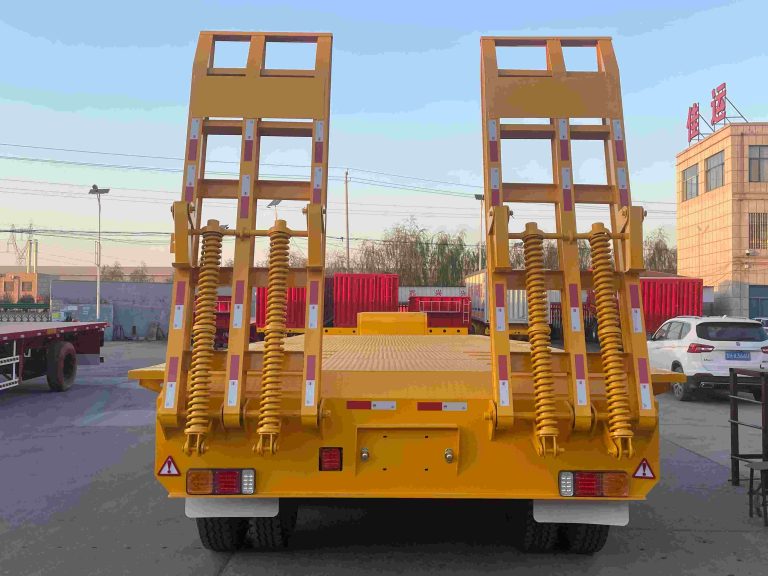

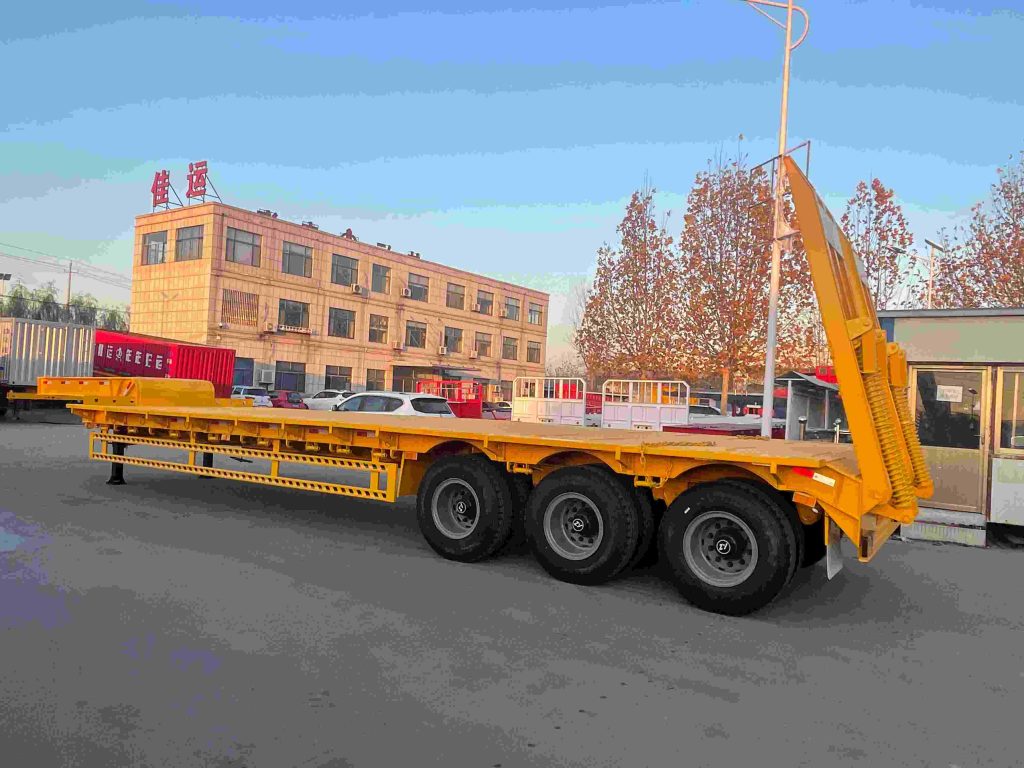

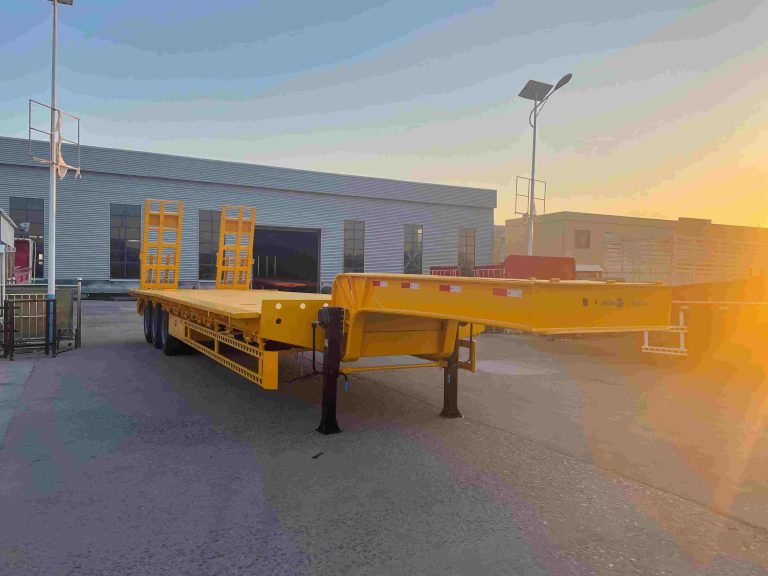

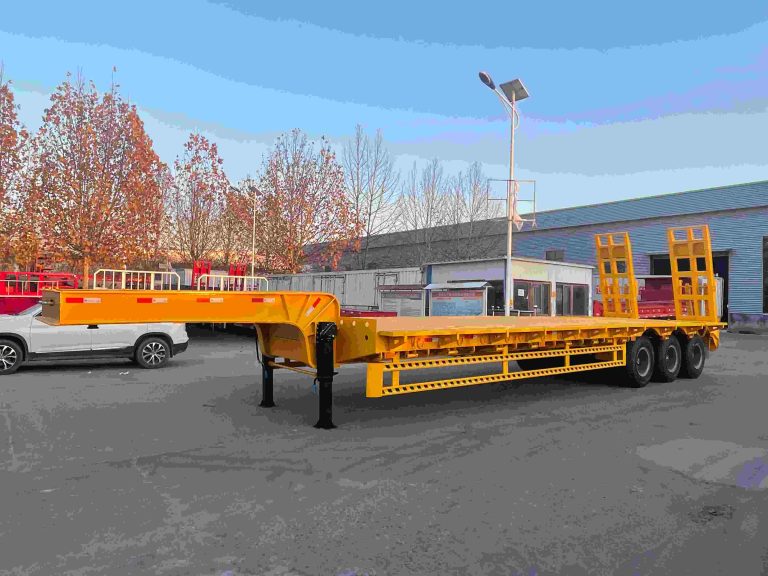

3.Product Details

4.Advantages of SUPREME Lowbed Semi Trailers

1. Main beam adopts HG high strength steelsand submerged arc welding technology, which ensure the smooth, sturdy welding seams and avoid welding-opening problems, and also improve the loading capacity.
2. Side beam adopt “H” steel, the experienced and durable design avoids it to form deformations.
3. Enhanced mechanical ladders are made by high strength steel, with high loading capacity, will not happen to the deformation when heavy equipment climbs on.
4. Polyurethane topcoats, with long service cycle, protect SUPREME lowbed trailers from rust.
5. LUCKIN adopts world famous brand spare parts to ensure the durable quality and using costs of Lowbed Semi Trailers.

5.FAQ

 1.Who are we?

Answer: SUPREME TRAILER is a group company; we have three trailer factories in Shandong and one trading company in Qingdao. We are focus on semi-trailers, trucks and parts.

2. Why choose us

Answer: 1) We have more than 20years experience in the trailer manufacturing. SUPREME TRAILER has got high reputations in China and oversea countries.

2) We have more than 20 engineers to design the kinds of trailers according to the detailed requirements and needs from customers.

3) We had exported thousands of trailers to Africa, Middle East, Asia, Australia, South America since 2005.
