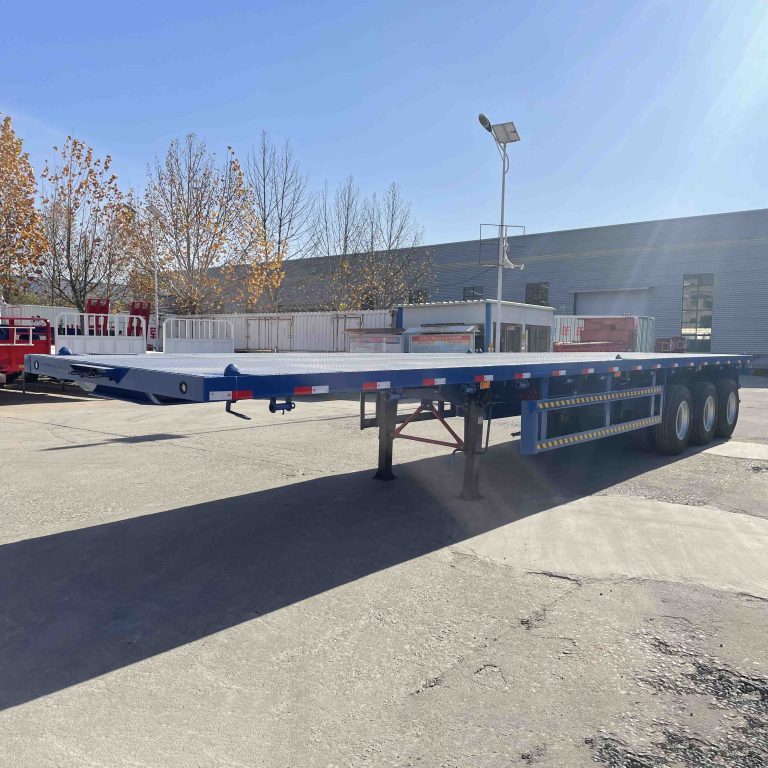

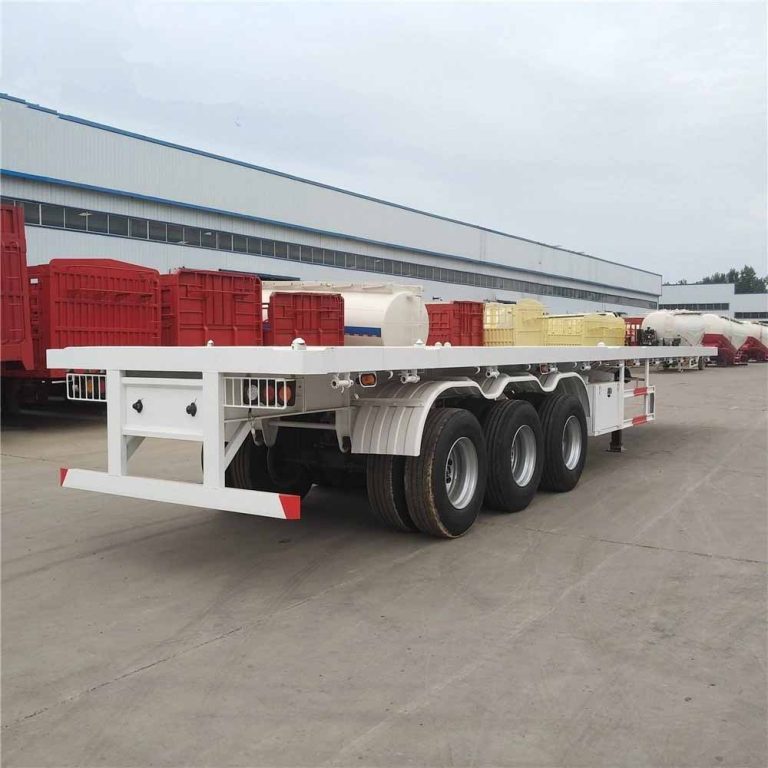

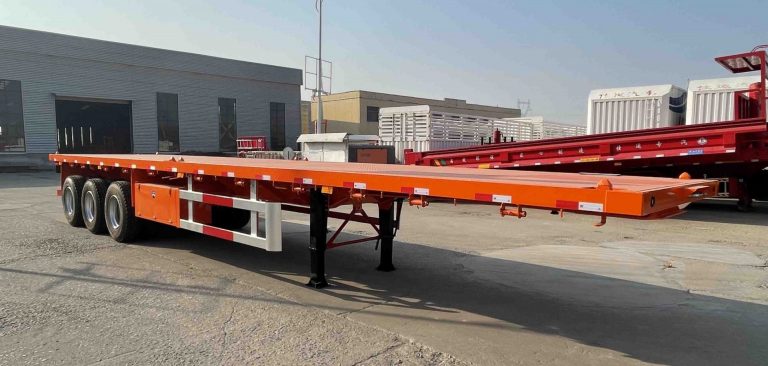

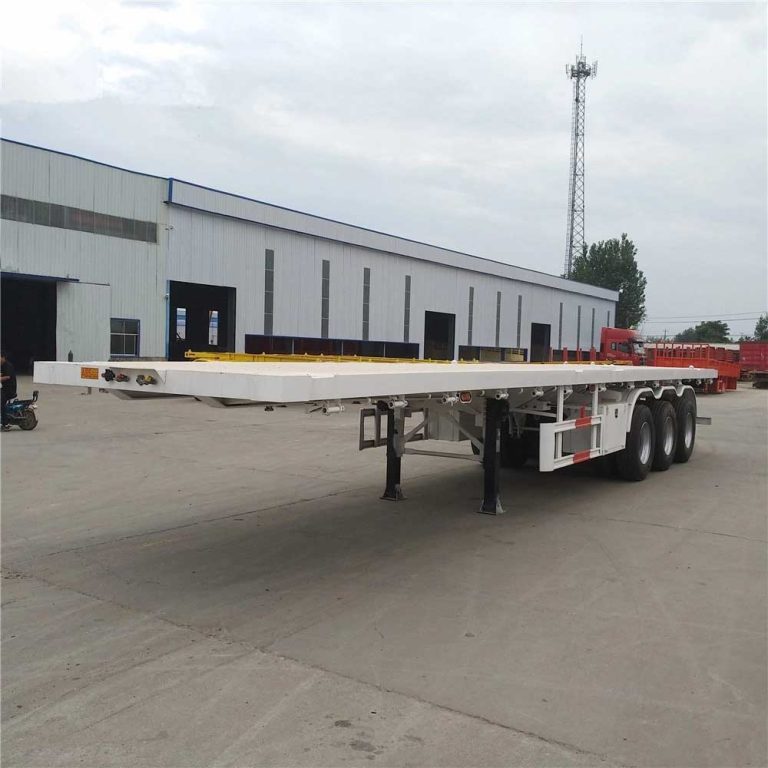

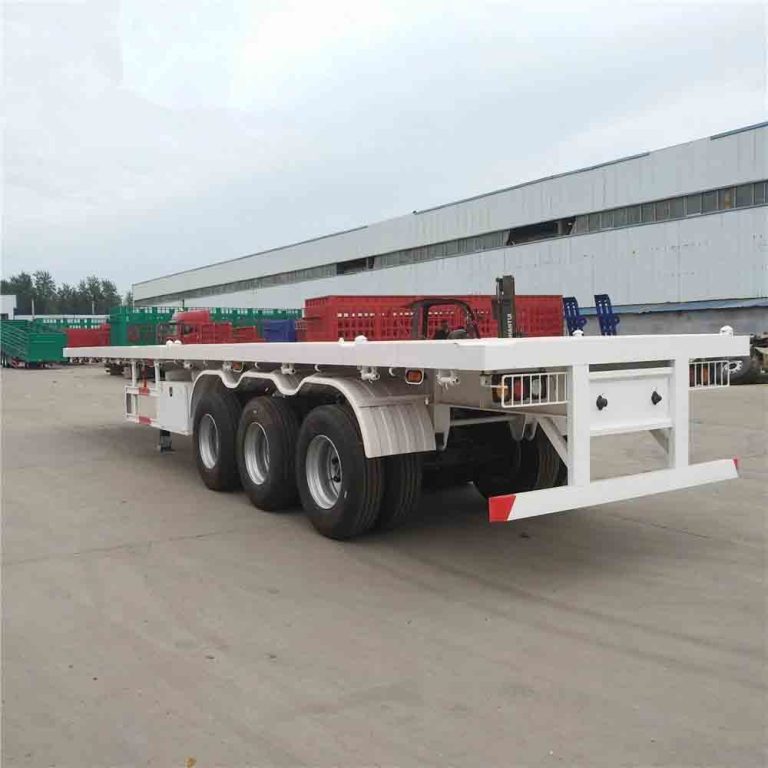

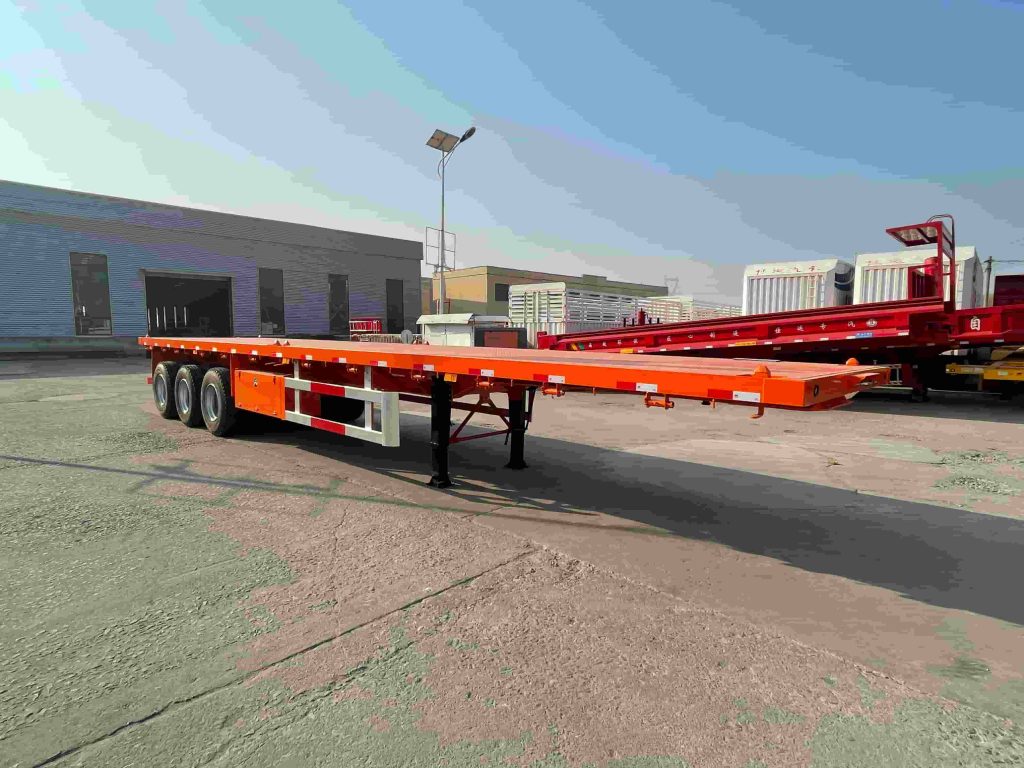

3 Axles 40FT Flatbed Container Semi Trailer for sale

Product Parameter

Tare Weight: about 7.2 T;

Payload: 60 T;

Dimension (L*W*H): 12500mm*2500mm*1500mm;

Main beam: 500mm height, top plate 14mm thickness*140mm width, bottom plate 16mm thickness*140mm width, middle plate 8mm thickness;

Twist lock: 4+4/8/12 pcs, which could support 1×20” container, 2×20” containers or 1×40” container one time;

Platform: 3mm thickness checkered plate

King pin: JOST 2.0/3.5 inches (bolted or welded);

Axles: BPW/FUWA/ZY brand, 13T, 3pcs;

Suspensions: Mechanical suspension (America type or German type);

Leaf springs: 10 layers 90mm*16mm, 6 units;

Tires: 11R22.5/12R22.5/11.00R20/12.00R20/315/80R22.5/385/65R22.5, 12pcs+1pc spare tire;

Rims: 9.0-22.5, 13pcs;

Landing gear: JOST 28T, Linkage Outrigger;

Spare tire carrier: 1pc;

Tool box: 1 unit;

ABS: Optional

Brake system: WABCO 6 relays valve; T30/30+T30 air chamber, 40L air tanks;

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable.

Accessories: 1 unit tool box, 1 pc spare tire carrier, all set of standard tools.

Others as the factory standard or according to the customer’s requirements.

Product Introduction

LUCKIN VEHICLE supply 3/4 Axles 40 Feet Flatbed Container Semi Trailers, which are very popular and competitive with their heavy capacity and durable quality. Except loading 20 inches and 40 inches containers, Flatbed Semi Trailer can also transport bulk goods, such like bagged cement, steel, wood, ect. In order to take care of the diversified uses, we equip with sufficient rope hooks and rope tighteners on both sides of our flatbed and drop side trailers.

With more than 15 years’ exporting experiences, LUCKIN VEHICLE has exported more than 800 units flatbed trailers to Africa and Southeast Asia countries based on our rich design experiences and durable quality and reputations. We are always on the way to help your customers gain suitable trailers and reliable wealth accumulations.
