10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. 10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale with 25-30 tons capacity can meet your needs of heavy loading and complicated road conditions.

10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale

Product Parameter (Specification)

Model Chassis model: ZZ3257N3647
Engine WD615.47(371Hp at 2200r/min, Euro II)1500Nm at 1100-1600r/min
Clutch Single-plate dry diaphragm spring clutch, diameter 430 mm, hydraulically operating with air assistance
Transmission HW19710, 10 forward and 2 reverse, manual
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle HF9 (9000Kg)
Rear Axles HC16 (2x16000Kg) Ratio: 5.73
Chassis Enhanced version of multiple-leaf spring (Front 10 pieces, Rear 12 pieces)
Fuel tank With one 300 L fuel tank with locking fuel cap
Steering ZF power steering, model ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2

Brakes Service brake: dual circuit compressed air brake

Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Without ABS (Optional)

Wheel & Tires Rims width: 8.5

Tires: 12.00R20

Cab HW76 cab, one sleeper, all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, exterior sun visor, stereo radio, safety belts, air horn, air conditioner, and single berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner, adjustable roof flap.

With air conditioner (optional)

Electrics Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW

Alternator: 3-phrase, 28V, 2240W; Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Cargo Body 5600x2300x1500mm, Front lifting, bottom 8mm, side 6mm
Dimensions in mm Wheel base

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle(o)

Departure angle(o)

Overall Dimension

3625+1350

2022

1830

1500

1670

19

26

8165×2496×3280(mm)

Weight in kg Net weight

Maximum load mass

Front axle loading capacity

Rear axle loading capacity

14000

30000

9000

16000×2

Performance Maximum driving speed(km/h)

Maximum grade ablility (%)

Minimum ground clearance(mm)

Minimum turning circle(m)

78

35

290

15

Product Introduction

10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. 10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale with 25-30 tons capacity can meet your needs of heavy loading and complicated road conditions. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight, high rigidity, high loading capacity.

Product Details

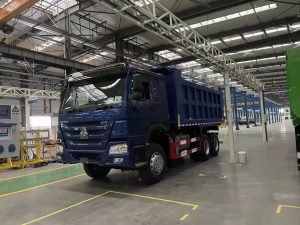

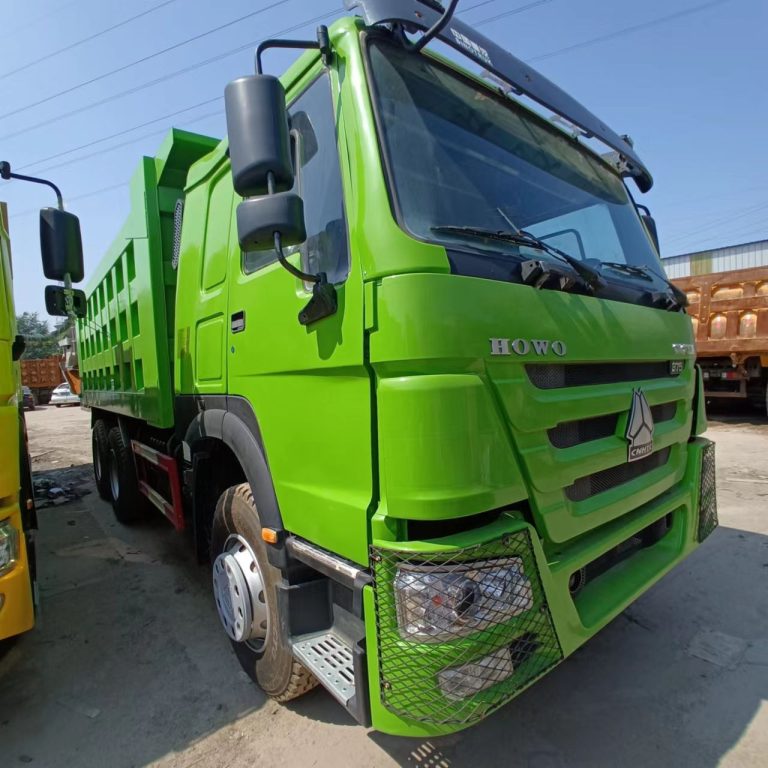

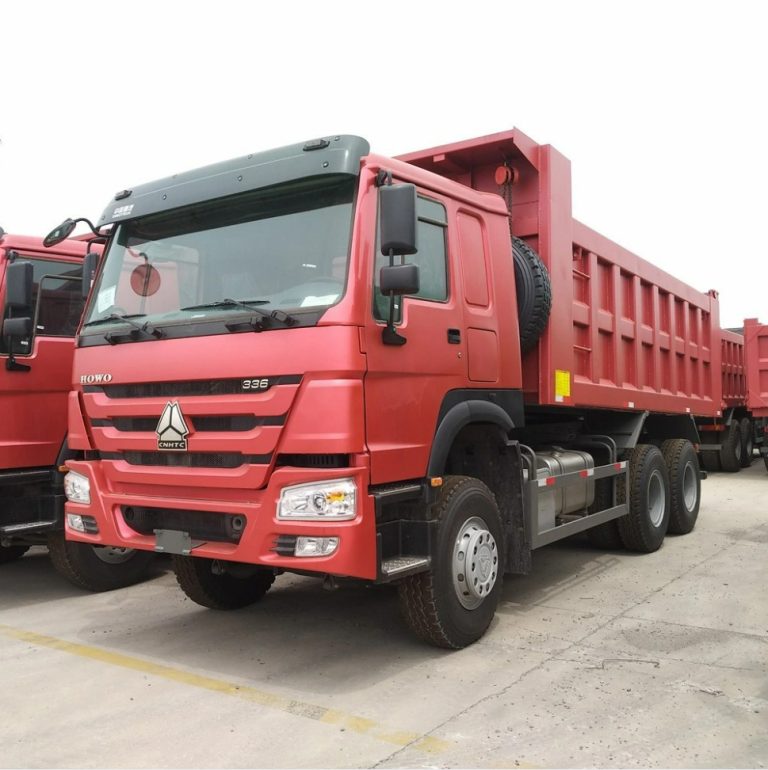

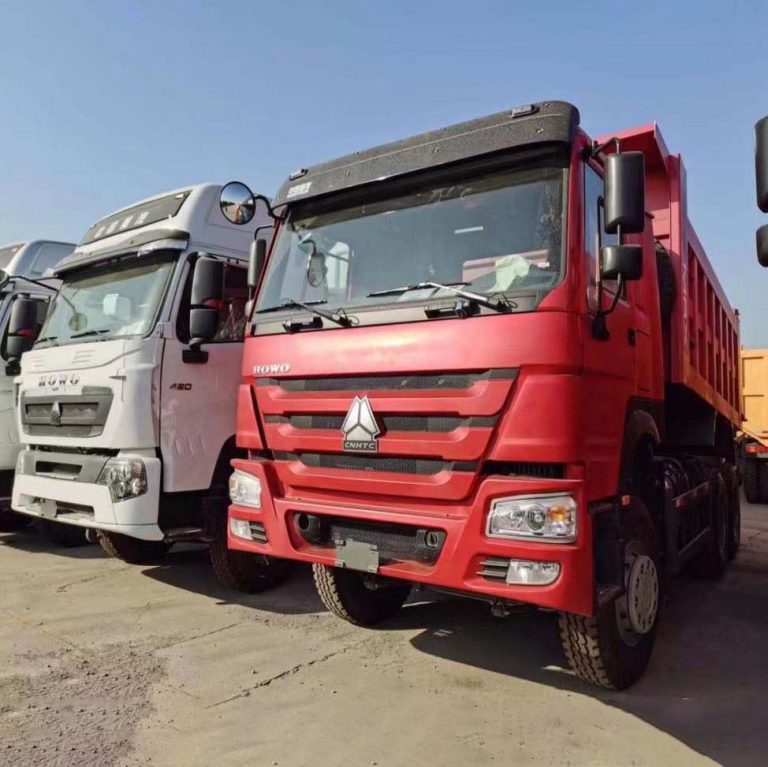

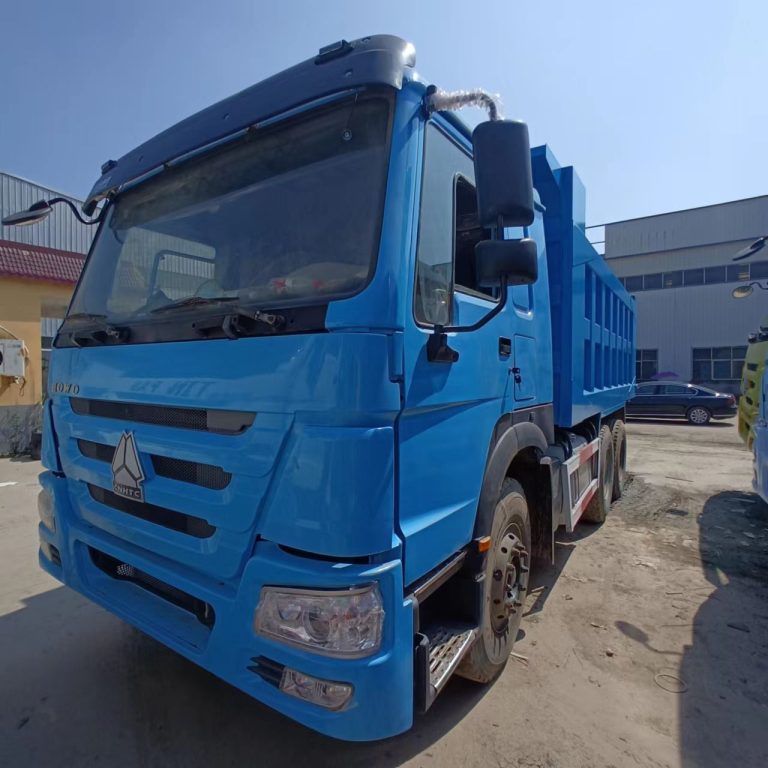

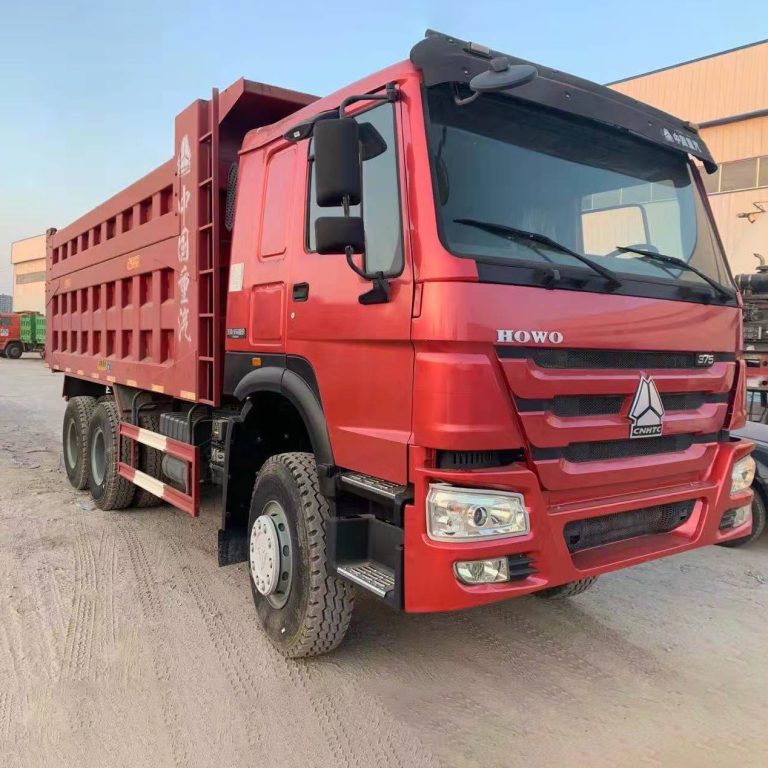

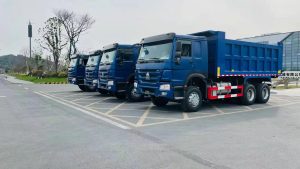

10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale插图

10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale插图1

10 Wheels HOWO 6X4 371HP DUMP TRUCK for Sale插图2
